Torque Measurement Trainer
Product Code : EL-MAILE-10813
Quick Answer: The Torque Measurement Trainer uses a strain gauge based reaction type torque transducer mounted on a 1M fulcrum arm with an L angle bracket, together with a pan and weights and a digital indicator (3½ digits, reading up to ±1999 counts) to display the torque directly in Kg-m. With 1 Kg-M capacity and 0.01 Kg-M resolution, it helps students understand how a torque sensor converts force and distance into a measurable electrical signal, expressed in units such as inch-pounds, foot-pounds, or Newton-meters.

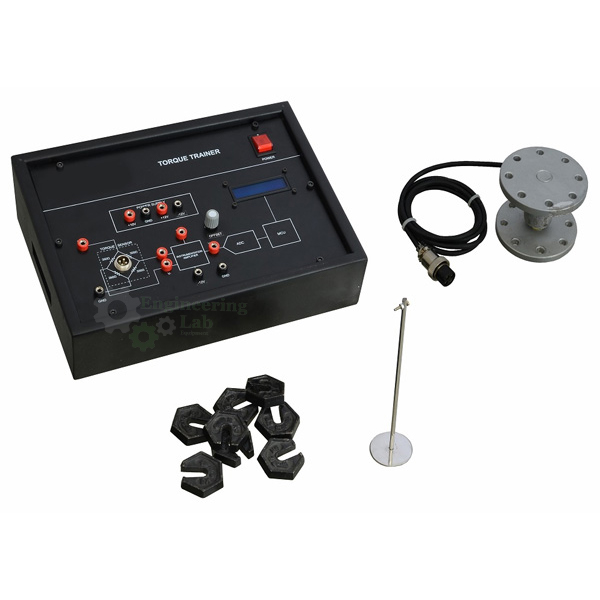

The Torque Measurement Trainer comprises of strain gauge based reaction type torque transducer, fulcrum arm of 1 M length with L angle to mount the sensor, Pan & weights with digital torque indicator to read the torque in Kg-m. A torque sensor or transducer converts torque into an electrical signal, and the most common type is a strain gauge that converts torque into a change in electrical resistance. The sensor’s output is a function of force and distance, and is usually expressed in inch-pounds, foot-pounds or Newton-meters.
FEATURES:
It provides scaling.
It provides filtering.
It offers a variety of outputs, compatible with various data acquisition systems.
This is embedded in the sensor and receives and conditions the input signal.
SPECIFICATION:
Torque Cell :
Reaction type.
Strain gauge based.
1 Kg-M Capacity.
Indicator :
3½ digits to read upto ±1999 counts.
Bridge Excitation :
10V DC
Resolution :
0.01 Kg-M
Accessories :
Fulcrum arm (1M), Pan, 100gX10 No. Dead Weights,
Power required for operation :
230V, 50Hz, 1 phase.
230V, 60Hz, 1 phase.
DIMENSIONS AND WEIGHT:
LxWxH: 400x300x300mm
Weight: approx. 15kg
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
