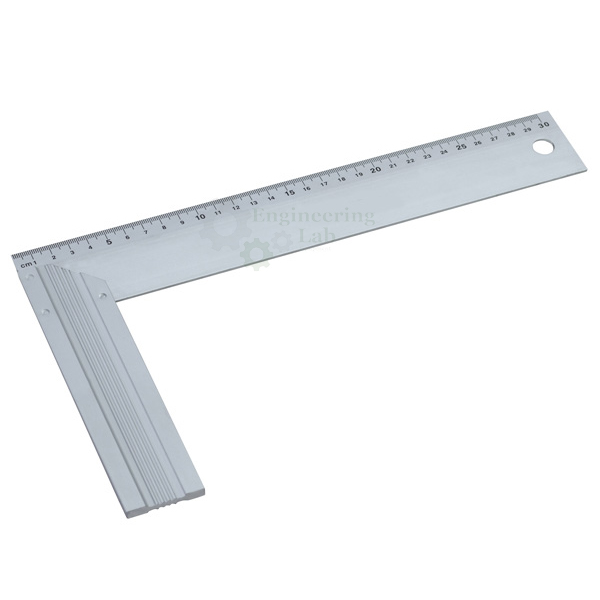

Engineering Square

Engineering Square

Product Code : EL-MAILE-10835

Quick Answer: An Engineering Square (machinist square) is the metalworkers’ equivalent of a try square, consisting of a steel blade inserted and either welded or pinned into a heavier body at an angle of 90°. Made entirely from metal for accuracy, it has a notch cut in the stock in line with the inside edge of the blade so measurements stay accurate even when there is a burr on the edge of the work. It is used to check that edges and ends of boards are square with adjoining surfaces, check the width, thickness, or flatness of narrow boards, lay out lines perpendicular to an edge, and measure short distances.

A machinist square or engineer’s square is the metalworkers’ equivalent of a try square. It consists of a steel blade inserted and either welded or pinned into a heavier body at an angle of 90°, and machinist try squares are made entirely from metal for accuracy. A notch is cut in the stock in line with the inside edge of the blade for accurate measurement even when there is a burr on the edge of the work.

FEATURES
Checking edges and ends of boards to see if they are square with adjoining surfaces
Checking the width or thickness of narrow boards
Checking flatness
Laying out lines perpendicular to an edge or side of a board
Measuring short distances
SPECIFICATION
The try square has a blade (straight edge) and a stock (beam), which are fixed together at exactly 90°.
The stock is much thicker than the blade.
The edge of the blade and the stock are perfectly sharp and straight.

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Angle Plate, Combination Square, Surface Plate
