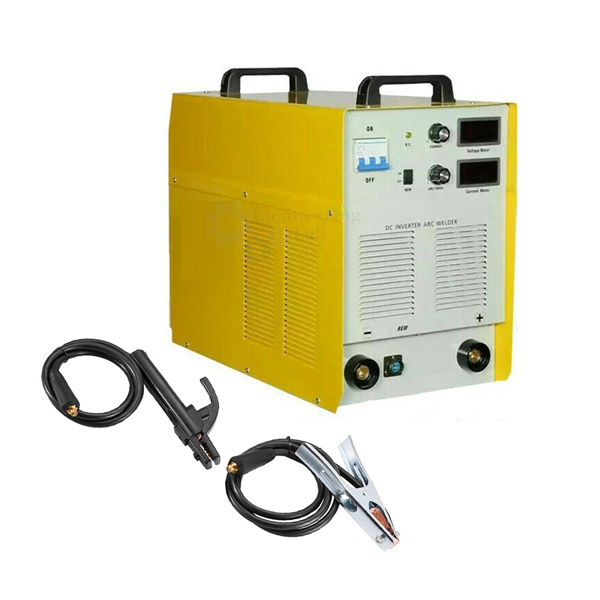

Arc Welding Machine
Product Code : EL-WTMAA-10598
Quick Answer: The Arc Welding Machine is an inverter-based welder built with an inverter frequency of up to 20KHZ for a quick dynamic response and high reliability in industrial welding processes. It delivers a high duty cycle and powerful welding capacity, maintaining a stable welding status even with a 100 metre output cable, while its auto-compensation function counters power-supply fluctuations and its anti-stick function operates across the whole current range. The machine is adaptable to down-orientation welding with cellulose electrodes and performs well across low/medium steels, low alloy steels, and stainless steel using different kinds of basic electrode, with an output current range of 40-400 Amp on a 3-phase, 50/60 Hz supply.
| Features | |
|---|---|
| Made in the advanced inverter technology with an inverter frequency up to 20KHZ, quick dynamic response in the inside electronic communication, high reliability and well-functions in welding process; capable of satisfying the tough requirements in the welding for the industrial engineering; highly reliable welding equipment. | |
| High Duty Cycle and Powerful Welding Capacity, even maintain a stable welding status under the supply of 100 metre output cable. | |
| Auto-Compensation-Function as to the power supply fluctuation, strong adaptability of anti-power-supply fluctuation and good shape seam; Anti-Stick Function within the whole current range. | |
| Adaptable in the down-orientation welding with the cellulose electrode; adaptable in the welding application in different electrodes, especially good for the different low/medium steels, low alloy steels and stainless steel in different kinds of basic electrode. | |
| Technical Specifications | |
| Frequency | 50/60 Hz |
| Phase | 3 |
| Output Current Range | 40-400 Amp |
| Duty Cycle (%) | 60 |
| Housing Protection Grade | IP21 |
| No Load Voltage | 68 V |
| Weight | 33 Kg |
| Efficiency | 85% |
| Dimensions | 21.5x11x21.5 Inch |
| Power Factor | 0.93 |
| Rated Input Current | 27.6 Amp |
| Current | 400 Amp |
For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
