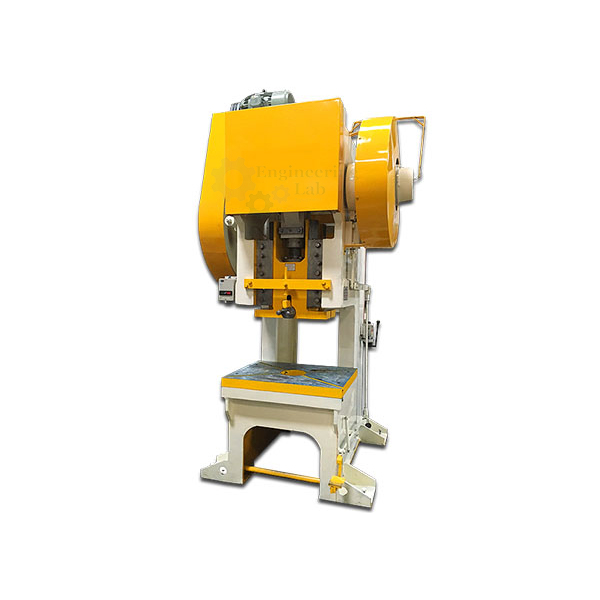

Power Press Machine
Product Code : EL-WTMAA-10466
Quick Answer: The Power Press Machine is an all-steel-frame mechanical power press with a special alloy steel crank shaft running in bronze bushes, a pin/rolling key type clutch made of special alloy steel with W.P.S./EN24 material components, and an adjustable stroke feature that allows short-stroke blanking and forming operations. Its high grade cast iron flywheel and cast or fabricated gears with precision hobbed teeth are engineered for balanced, vibration-free, long-life performance suited to mass production.
Frame
The frame is of all steel construction, fabricated from rolled steel plates with suitable cross ribbings, and is designed for perfectly balanced distribution of stress over the cross section, eliminating deflection and vibration and, as a result, increasing tool and machine life. Presses up to 30T will be supplied with C.I. legs, and proper alignment of the frame is ensured by machining.
Crank Shaft
The Crank shaft is made of special alloy steel, precisely machined to a grind finish with close accuracy, and fitted in bronze bushes for smooth working, longer life, and consistent performance.
Clutch
Clutches are of pin/rolling key type and are well supported with high rigidity. The Clutch is made of special alloy steel, and the pin/rolling key is manufactured from W.P.S./EN24 material with proper heat treatment to give continuous stroke for mass production.
Adjustable Stroke
Gears are of steel cast or fabricated construction, with gear teeth generated by a precision hobbing machine. The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing a short stroke for blanking and forming operations. A properly sized flywheel, made of high grade cast iron, stores and releases adequate energy for the pressing operation and is properly balanced for smooth running.
| Specification | Details |
|---|---|
| Frame | All steel construction, fabricated from rolled steel plates with cross ribbings |
| Legs | C.I. legs on presses up to 30T |
| Crank shaft | Special alloy steel, machined to a grind finish, fitted in bronze bushes |
| Clutch | Pin/rolling key type, special alloy steel; pin/rolling key of W.P.S./EN24 material with heat treatment |
| Stroke | Adjustable; short stroke for blanking and forming operations |
| Gears | Steel cast or fabricated construction, teeth generated by a precision hobbing machine |
| Flywheel | High grade cast iron, balanced |
For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026
