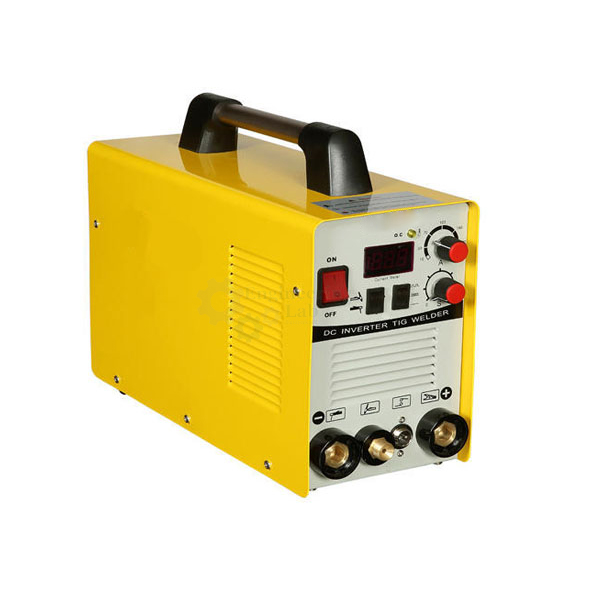

TIG Welding Machines

TIG Welding Machines

Product Code : EL-WTMAA-10599

Quick Answer: TIG Welding Machine with input voltage of 3 Phase 415+ 10%, frequency of 50/60 Hz, rated input power capacity of 10 KVA and no-load voltage V of 80. These welding machines also feature output current adjustment range (A) of 0-300 with rated output voltage (V) of 22, rated duty cycle 35% of 300 A and rated duty cycle 60% of 250 A. Further, these welding machines also feature rated duty cycle 100% of 210 A, efficiency (%) of 85, power factor (COSÆ) of 0.93, and insulation class of H. These TIG welding machines also feature protection class of IP21, IP23, suitable welding thickness mm of 0.5 mm to 6mm.

Technical Specifications
Input voltage3 Phase 415+ 10%
Frequency50/60 Hz
No-load consumption60 W
Efficiency (%)85
Power factor (COSÆ)0.93
Current of MMA (A)0-300
Insulation classH
Protection classIP21, IP23
No-load voltage V80
Output current adjustment range (A)0-300
Rated output voltage (V)22
Rated duty cycle 35%300 A
Rated duty cycle 60%250 A
Rated duty cycle 100%210 A
Rated input power capacity10 KVA
Suitable welding thickness mm0.5 mm to 6mm
Welding Electrodeup to 6 mm
Weight (Approx.)17 KG
Measurement (mm)480 X 205 X 355

For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
