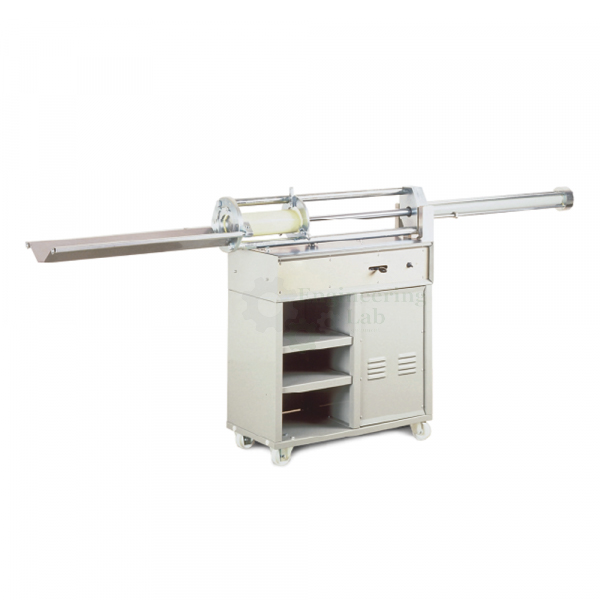

Soil Extruder, Motor Operated
Product Code : EL-STLE-10405
Quick Answer: The Soil Extruder, Motor Operated is a hydraulic soil sample extruder with one of the largest capacities on the market (900mm ram stroke), a max thrust of 60 kN, and a 750W motor. It extrudes sample tubes up to 160mm external diameter in either vertical or horizontal position at a max ram speed of 6 mm/sec, weighs approximately 160 kg, and is supplied without tube adaptors, which must be ordered separately.
Features one of the largest capacities available on the market (ram stroke 900 mm), and due to the large number of standard adaptors, is considered the most versatile extruder. The machine exerts a max. thrust of 60 kN and is very simple to operate: a lever controls the extruding speed and the hydraulic valve for the extrusion or return movement. It can also be stopped at any point in its travel to enable extrusion into smaller sample tubes or to take smaller size specimens. Sampling tubes are held in place by an adjustable "V" shape bearing which can extrude either in the vertical or horizontal position. Both the hydraulic cylinder assembly and the receiving table can easily be lowered alongside the machine to save space when not in use. The machine is supplied without tube adaptors, which have to be ordered separately.
Technical Specifications:
Power: 750 W
Max. load: 60 kN
Max. external diameter of sample tubes: 160 mm
Max. ram stroke: 900 mm
Max. working ram speed: 6 mm/sec.
Overall dimensions:
Horizontal working position (lxwxh): 2730x409x1180 mm
Vertical working position (lxwxh): 1025x409x1080 mm without accessories
Weight approx.: 160 kg
