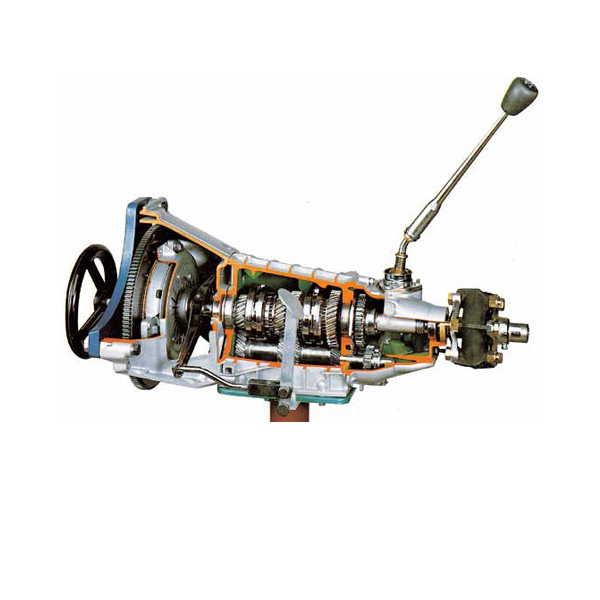

Working Model of Gear Box with Clutch Manufacturer,Supplier and Exporter in India
Product Code : EL-AELE-10744
The Educational model is designed to help demonstrate this cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections.
The gearbox provides a selection of gears for different driving conditions: standing start, climbing a hill, or cruising on level surfaces.
The lower the gear, the slower the road wheels turn in relation to the engine speed.
The engine drives the input shaft, which drives the lay shaft.
The lay shaft rotates the gears on the main shaft, but these rotate freely until they are locked by means of the synchromesh device, which is splined to the shaft.
Many parts have been chromium-plated and galvanized for a longer life.
FEATURES:
Gear box with clutch model ideal for classroom demonstrations
Cross-sectioned various parts to show internal operation
Equipment Layout: On Base with wheel
Fine finish
Operated: Manually
Simple operations
Functional accuracy
SPECIFICATION:
Fully functional, Gear Box With Clutch system is installed in a mobile solid frame
Dry single-plate clutch with spring and diaphragm.
The clutch is operated mechanically by means of a foot pedal for training purposes.
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 900 x 600 x 600 mm
Weight (approx.): 55 kg
