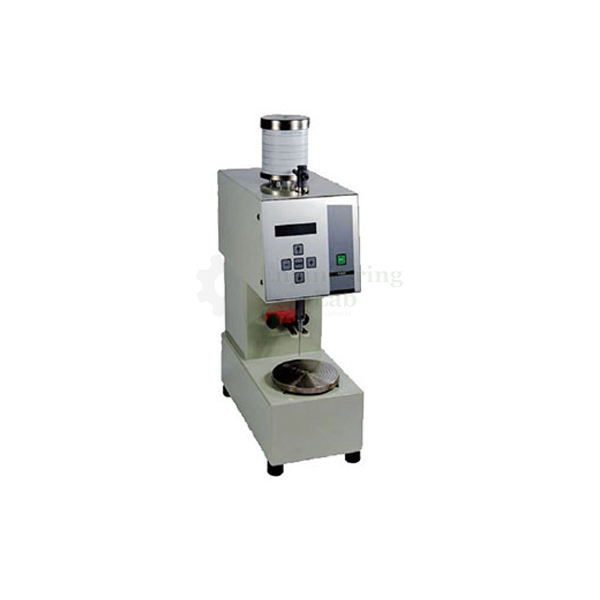

Automatic Vicat Apparatus
Product Code : EL-CTLE-10348
Quick Answer: Automatic Vicat Apparatus is a computerized cement testing instrument used to measure the initial and final setting time of cement, conforming to EN 196-3, 13279-2, 480-2, ASTM C191 and C187. A needle or probe drops freely into the cement sample at regular intervals and fixed positions, and a sensor with 0.1 mm resolution measures the penetration depth; as the cement hardens the penetration depth decreases, and when it reaches pre-defined threshold values, the setting times are automatically calculated and recorded. It features a 4.3-inch touch screen colour display, LAN and USB connectivity for networking up to 32 units and data storage, and weighs approximately 10 kg.
As with the older generations, the test procedure is unchanged: a needle (or a probe) drops freely into a cement sample at regular intervals and in fixed positions, and the penetration depth is measured by a sensor with 0.1 mm resolution. Along with hardening process development the penetration depth decreases, and when it matches thresholds pre-defined by Standards, the initial and final setting times are measured and recorded.
Technical specifications :
Conforming to EN 196-3, 13279-2, 480-2, ASTM C191, C187
Large size 4.3″ touch screen color display
LAN port for direct connection to PC of a single unit or connection to a LAN hub for creating a network with up to 32 independent units all controlled by a single PC.
1 LAN cable is included
USB port for data storage on pen-drive (included)
Automatic calculation of initial and final setting time at programmable penetration depth limits
Wide range of accessories including EN and ASTM/AASHTO parts, in-water testing kit, needle cleaning device, integrated printer, probes for testing consistency and gypsum
Minimum penetrations rate: 10 seconds
Test procedures can be customized and stored to match user-defined requirements
Can incorporate an integrated graphic printer showing test result and setting time plot
Large test space with easy accessibility
Penetration measurement by encoder
Power: 50 W
Dimensions: 200x400x410mm (L x W x H)
Weight approx.: 10 kg
Firmware specifications :
Easy programming of customized test profiles, recallable for future tests, including:
adjustable test start delay
penetration points positions
automatic end-test detection
automatic measurement of initial and final setting time
manual or automatic penetration rate
free or driven dropping mode
holding intervals inside the sample
Test data: test number, operator, client, date, hour, cement type, water percentage, delay
Easy calibration menu
Clock calendar
Multi-language
Standards: EN 196-3, 13279-2, 480-2, ASTM C191, C187
