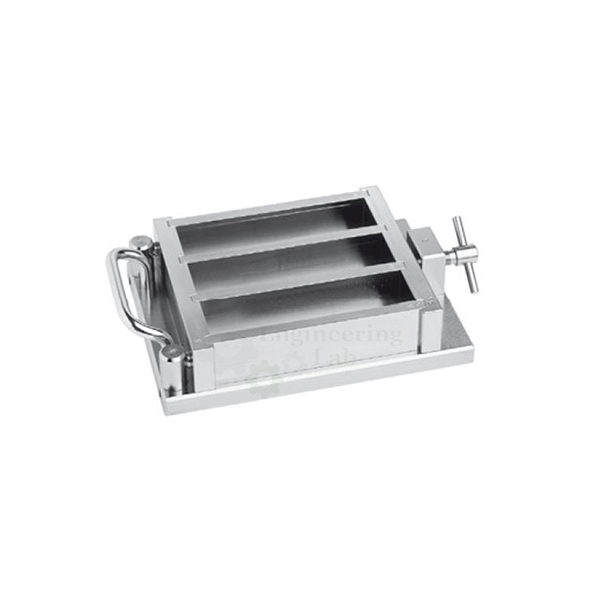

Hydraulic Shrinkage Mould

Hydraulic Shrinkage Mould

Product Code : EL-CTLE-10346

Quick Answer: Hydraulic Shrinkage Mould is a three-gang mould used to determine the linear shrinkage of cement mortars per EN 12617-4, with the shrinkage measurement taken using the Length Comparator. It is made of special alloy steel with a minimum hardness of HV200, individually tested with certified instruments, and the same mould can also be used for testing grouts conforming to EN 12808-4 and NF P15-413.

This version is used for the determination of linear shrinkage of cement mortars (EN 12617-4). It is a three gang mould, individually tested with certified instruments, and made of special alloy steel, minimum hardness HV200. The same mould can be used for testing grouts conforming to EN 12808-4 replacing the standard plugs with the mould and placing two 15x40x160 mm plastic inserts inside each compartment. The shrinkage measurement has to be done with the Length comparator.
Weight approx.: 12 kg

Standards: EN 12617-4 | EN 12808-4 | NF P15-413

For this and other cement testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
