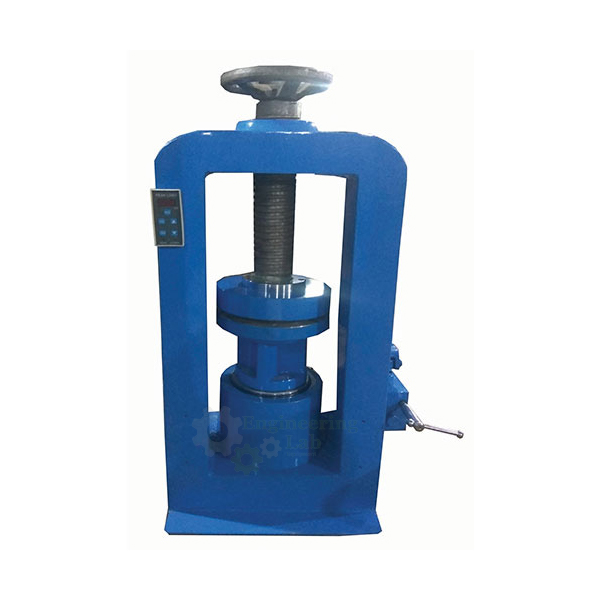

Digital Compression Testing Machine (Hand Operated)

Digital Compression Testing Machine (Hand Operated)

Product Code : EL-CTLE-10921

Quick Answer: The Digital Compression Testing Machine (Hand Operated) is fitted with a digital indicator on the side of the machine and is electrically operated on single phase. It is a load-frame testing machine built with welded “C” channels able to withstand high loads, featuring a hydraulic jack fitted at the centre of the base that carries a lower platen and spacer block positioned via a centering pin, a lead screw through the top of the frame carrying a self-aligning upper platen with a spherical seat, and a grooved lower platen for correctly placing the specimen; platens are accurately machined, hardened and polished.

A Digital Indicator is fitted to the side of the machine, which is electrically operated on Single Phase.

Specification:

In these load frames “C” channels are used; they are welded at the top as well as the bottom and withstand high loads. A hydraulic jack is fitted at the centre of the base of the load frame, over which the lower platen and spacer block can be fitted with the help of a centering pin. A lead screw passes through the top of the frame, and to the lower end of this lead screw is fixed the upper platen with a spherical seat for self-alignment. The lower platen has grooves to correctly place the specimen. The platens are accurately machined, hardened and polished.

Standards: IS 516, BS 1881

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
