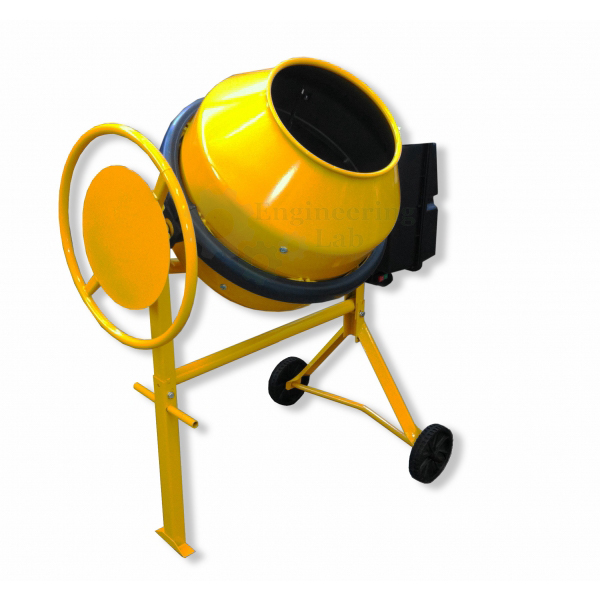

Laboratory Drum Type Mixer
Product Code : EL-CTLE-10289
Laboratory Drum Type Mixer (code EL-CTLE-10289) is a drum mixer for producing batches of concrete in the testing laboratory, with a 125 litre drum that yields 75 litres of concrete. It runs from a 230V single phase 50 Hz supply at a rating of 0.3 HP, measures 720 × 1320 × 1280 mm and weighs 60 kg.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Drum mixer |
| Drum volume | 125 litres |
| Yield | 75 litres of concrete |
| Power supply | 230V, 1 phase, 50 Hz |
| Motor rating | 0.3 HP |
| Dimensions | 720 × 1320 × 1280 mm |
| Weight | 60 kg |
| Standards | BS and IS |
| Product code | EL-CTLE-10289 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Laboratory Drum Type Mixer Used For?
A drum mixer blends cement, aggregates and water by tumbling them in a rotating drum, and it is used when a set of cubes, cylinders or beams has to be cast from one uniform batch of concrete. The materials are loaded into the drum and turned until the mix is even, after which the concrete is emptied for workability tests and for filling the specimen moulds. The drum volume of 125 litres is larger than the 75 litre yield so that the materials have room to fall and fold over as the drum rotates. The standards listed for the drum mixer are BS and IS.
What to Specify When Ordering
- Quantity — the number of drum mixers required.
Frequently Asked Questions
How much concrete does one batch in the drum mixer give?
The drum has a volume of 125 litres, and the stated yield from it is 75 litres of concrete per batch.
What power supply does the drum mixer need?
It runs on a 230V, single phase, 50 Hz supply, and the power rating given for it is 0.3 HP.
How much floor space and weight should be allowed for?
The mixer measures 720 × 1320 × 1280 mm overall and weighs 60 kg, which helps when planning where it will stand in the laboratory.
What is the drum type mixer used for?
It mixes batches of concrete in the concrete testing laboratory, for example to supply workability tests and specimen moulds from a single uniform batch.
How can a quote for the drum mixer be requested?
Click the Add To Cart enquiry button on this page, or send the number of mixers and the delivery address through the contact page.
OEM Manufacturer
Buyers of the Laboratory Drum Type Mixer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Concrete Testing Equipment
- Flow Table — flow table for mortar and cement: ASTM model 254 mm brass, EN model 300 mm stainless steel.
- Vibrating Table — 500 × 500 mm vibrating table for 140 kg of moulds, 2600 to 3600 vibrations per minute.
- Longitudinal Compressometer — two-ring cylinder compressometer with 0.002 mm dial gauge and anvil zero setting in wooden case.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of drum mixers required and your delivery location through the contact page, or add the Laboratory Drum Type Mixer to the enquiry cart from this page.
Last updated: October 2026
