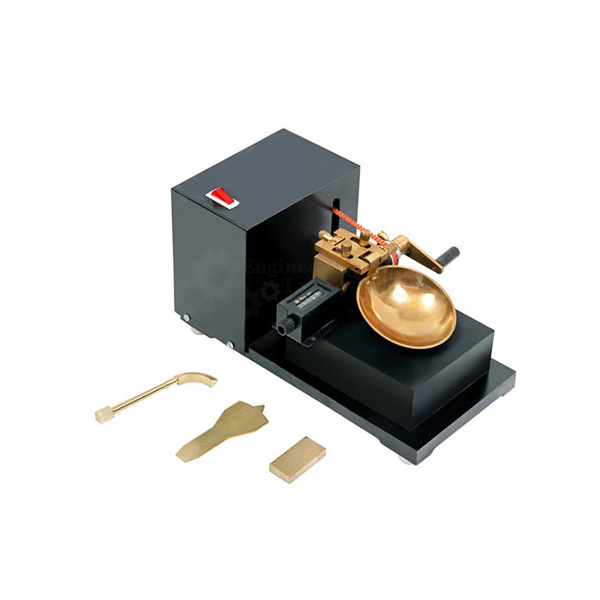

Liquid Limit Device Motorized

Liquid Limit Device Motorized

Product Code : EL-STLE-10935

Specification:
Liquid limit is the water Content at which soil passes from zero strength to an infinitesimal strength, hence the true value of liquid limit cannot be determined.
A premium quality liquid limit device with counter tools.
For determination purpose liquid limit is that water content at which a part of soil, cut by a groove of standard dimensions, will flow together for a distance of 1.25cm under an impact of 25 blows in a Motorized liquid limit apparatus.
Soil at the water content has some strength which is about 0.17N/cm. sq. (17gms/sq.cm.) and content soil just passes from liquid state to plastic state.
Also, these tools are made available in various sizes and shapes.

Specifications:
It consists of a brass cup bed held on an adjustable bracket.
Material is brass and Fiber.
Motorized versions 4kg
It has the voltage of 220v.
The cup can be adjusted for a fall of 1cm and can be raised and dropped on a rubber base of standardized hardness by cam action.
Complete with one casegrande grooving tool, one ASTM grooving tool and a height gauge block.
Motor gear give approx. 120 RPM.

Standards: IS 2720 (PART V), BS 1377-2 , ASTM D 4318
