Bending Stress In a Beam with Data Acquisition
Product Code : EL-SELE-10575
Quick Answer: The Bending Stress In a Beam apparatus (with Data Acquisition) uses a T-beam mounted on a Structures Test Frame to investigate stresses and strains under bending loads, with a load cell and optional Digital Force Display to measure bending force, strain gauges and a digital strain bridge (compensated by dummy strain gauges) to measure strain, and an optional Structures Software package for automatic data acquisition and virtual experiments.
| An experimental apparatus to investigate the stresses and strains within a structure in relation to bending loads. | |

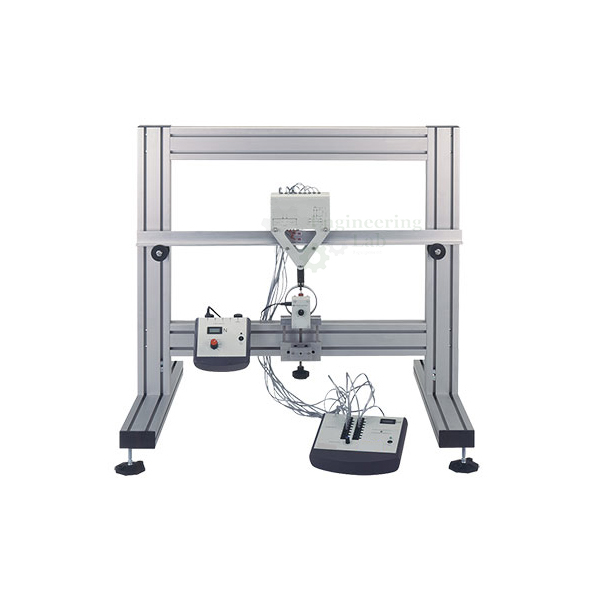

| The experiment hardware is a T-beam that fits onto a Structures Test Frame. | |
| The equipment includes a lead for connection to the Digital Force Display. | |
| Students adjust a load cell that bends the beam and, when connected to the optional Digital Force Display, it measures the bending force. | |
| Strain gauges and a digital strain bridge measure the strains in the beam. | |
| Dummy strain gauges compensate for temperature variation and balance the strain bridges. | |
| The Operation Manual provides details of the equipment including sample experiment results. | |
| The Operation Manual describes how to use the equipment and gives experiment procedures. | |
| Key features | |
|---|---|
| Structures training module for students of mechanical, civil and structural engineering | |
| Realistic and verifiable experiment results | |
| Allows safe and practical experiments into bending stress in a beam | |
| Optional Structures Software package for extra ‘virtual’ experiments that simulate and confirm the results from your hardware and allow extended experiments | |
| Optional unit including Structures Software package for automatic data acquisition and virtual experiments. |
