Shear Force in a Beam Apparatus

Shear Force in a Beam Apparatus

Product Code : EL-SELE-10579

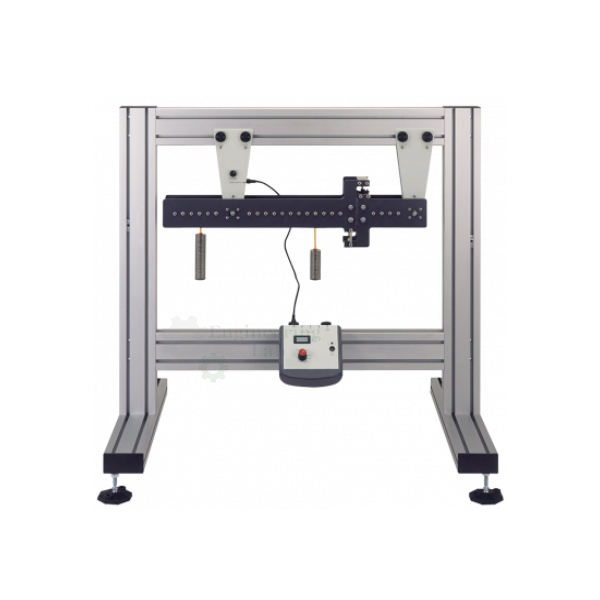

Quick Answer: The Shear Force in a Beam Apparatus is an experiment module for the Structures Test Frame, used to study the shear force in a beam under load. Loads are applied at set positions using hangers holding various masses, and a Digital Force Display shows the forces during experiments.

The beam fixes to the Structures Test Frame, and students carry out the experiments by hanging the masses at the set positions and reading the forces from the display. The Operation Manual describes how to use the equipment, gives the experiment procedures and includes sample experiment results.

Key features
Structures training module for students of mechanical, civil and structural engineering
Optional Structures Software package for extra ‘virtual’ experiments that simulate and confirm the results from your hardware and allow extended experiments
Optional unit with Structures Software package for automatic data acquisition and virtual experiment.

For this and other structural engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: October 2026

Related Products: Pin Join Truss Apparatus Data Acquisition, Behavior of Column and Struts Apparatus, Redundant Joint Truss Apparatus, Simple Suspension Bridge Experiment
