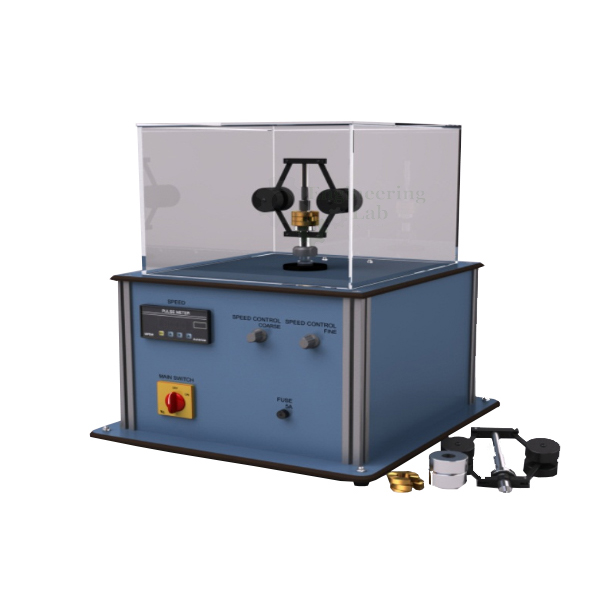

Universal Governor Experiment

Universal Governor Experiment

Product Code : EL-DOMLE-10779

Quick Answer: The Universal Governor Experiment lets students study the motion and function of three classic centrifugal governor types – Porter, Proell and Hartnell – on a single platform. Each governor is locked from above onto a small, speed-controlled DC motor flange (up to 400 rpm), with a set of weights supplied for the Porter and Proell configurations; lift displacement is read from line marks on the governor shaft while speed is shown on a digital display, all behind a transparent safety guard.

The Universal governor is designed for studying the motion and functions of the following governors: Porter, Proell and Hartnell. The equipment consists of centrifugal force governor systems, with the governor placed and locked from above onto a small motor flange fitted with a speed controller; a set of weights is provided for the Porter and Proell governor. Lift displacement can be read from line marks on the governor shaft, and speed is shown on a digital display, with a transparent guard provided for safety.

FEATURES
Speed vs. displacement.
Study of different governors on single platform
SPECIFICATION
Governors
1 ea. Porter.
1 ea. Proell.
1 ea. Hartnell.
Rotor motorDC motor with speed controller.
Rotor speedUp to 400 rpm.
Balancing weights1 lot.
Required for operation
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT
L x W x H (approx.)600 x 600 x 600 mm
Weight48kg

For this and other dynamics of machine lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
