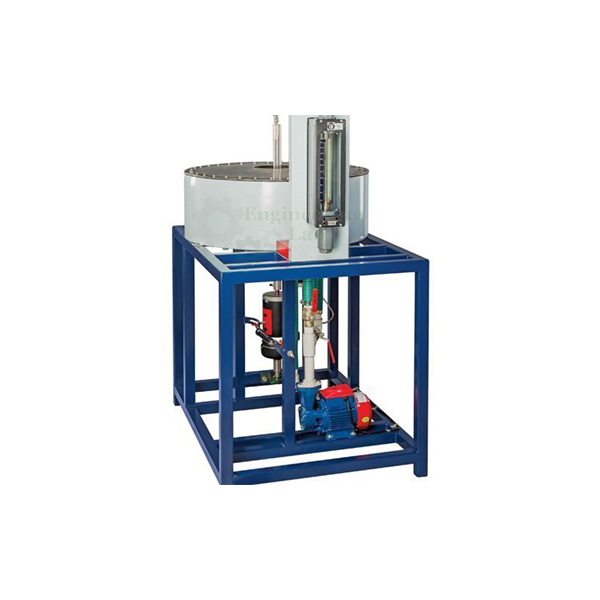

Corollis Component of Acceleration Apparatus
Product Code : EL-DOMLE-10770
Quick Answer:
The Corollis Component of Acceleration Apparatus is an experimental set-up that studies the Coriolis component of acceleration of a slider-crank mechanism by replacing the mechanical slider with a continuous stream of water flowing through a rotating pair of tubes. A swinging-field motor, which also acts as a dynamometer, rotates the tubes at various speeds while continuously measuring the torque applied to them, and a Perspex window on top of the stainless-steel tank gives a clear, splash-free view of the process. The self-contained, water-recirculating unit lets students determine the Coriolis component of acceleration at various rotation speeds and water flow rates.
The experimental set-up is designed to study Coriolli’s Component of Acceleration of a slider crank mechanism. Here the mechanical slider system is replaced by a continuous stream of water flowing through a steady rotating pair of tubes, which can be rotated at various speeds using a swinging field motor that also acts as a dynamometer and continuously measures the torque applied to the rotating tubes. A Perspex window on top of the tank gives a clear view of the process and prevents splash of the water over the side of the tank.
FEATURES:
The equipment is self-contained, water-recirculating, and provided with its own speed control unit and water-circulating pump.
The Coriolis component of acceleration can be determined at various speeds of rotation and water flow rates.
SPECIFICATION:
Water Tank: Made of Stainless Steel
Rotating Arms: 9mm/6mm orifice diameter, Length 300 mm.
Rota meter: 250 to 2500 LPH
Electric Motor: Swinging field, Variable speed.
Pump: FHP for water circulation.
The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure
Required for operation :
Water supply and drain
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 800 x 800 x 1200 mm
Weight: 115kg
For this and other dynamics of machine lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
