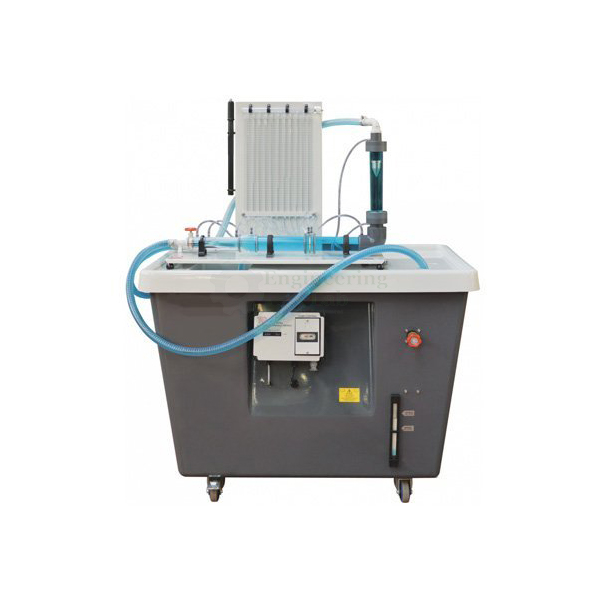

Flow Meter Demonstration Unit
Product Code : EL-FMLE-10658
QUICK ANSWER: The Flow Meter Demonstration Unit is used on a Hydraulics Bench to compare flow measurement by a Venturi meter, a variable area meter and an orifice plate. Its eight-tube manometer board reads 0-400mm, the variable area meter covers 2-20 l/min, and the Venturi throat is 15mm with a 20mm orifice plate.
The measuring devices are made of transparent plastic so that their function can be seen, and they are laid out with their pipework on a metal sheet. Pressure tappings measure the head loss across each meter, and a multiple-tube manometer shows the pressure curve along the Venturi. The unit measures 800 x 800 x 1200 mm and weighs 120kg.
| FEATURES | |
|---|---|
| Directly comparing flow measurement using a Venturi meter, variable area meter and orifice plate | |
| Calibrating each flow meter using the volumetric measuring tank of the bench | |
| Comparing pressure drops across each device | |
| Venturi meter, variable-area meter and orifice plate with flow-control valve | |
| Pressure tappings to measure head loss across each meter | |
| Quick-release fitting for easy connection to Hydraulics Bench | |
| Supplied with manometer board with eight tubes | |
| SPECIFICATION | |
| Manometer range | 0-400mm |
| Variable area meter | 2-20 l/min |
| Number of manometer tubes | 8 |
| Orifice plate diameter | 20mm |
| Venturi dimensions | |
| Throat diameter | 15mm |
| Upstream pipe diameter | 31.75mm |
| Upstream taper | 21° inclusive |
| Downstream taper | 14° inclusive |
| DIMENSIONS AND WEIGHT | |
| L x W x H | 800 x 800 x 1200 mm |
| Weight | 120kg |
For this and other fluid mechanics lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
