Snap Gauges

Snap Gauges

Product Code : EL-MAILE-10827

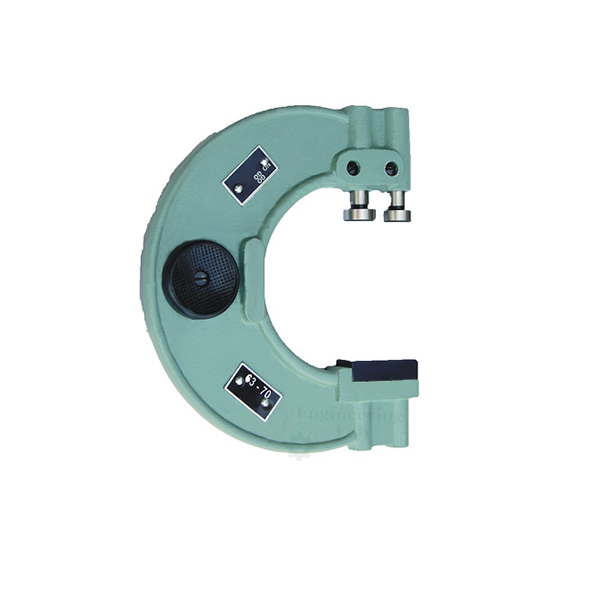

Quick Answer: A snap gage is a form of go/no go gauge — a limit gage with permanently or temporarily fixed measurement aperture(s) used to quickly verify whether an outside dimension of a part matches a preset dimension or falls within predefined tolerances. This adjustable limit ‘C’ type snap gage has a one piece rectangular anvil and two adjustable square anvils manufactured from hardened, lapped tool steel, mounted on a fully stabilized cast iron frame, giving a measuring range of 0″-1″ with consistently high measuring capability and repeatability.

A snap gage is a form of go/no go gauge.  It is a limit gage with permanently or temporarily fixed measurement aperture(s) (gaps) which is used to quickly verify whether an outside dimension of a part matches a preset dimension or falls within predefined tolerances.

FEATURES :
A one piece, rectangular anvil and two adjustable square anvils, all manufactured from hardened, lapped tool steel, form the base of the measuring gage.
A fully stabilized cast iron frame forms the base of the ‘C’ type adjustable limit snap gage.
Consistently high level of measuring capability and repeatability.
Measuring range: 0- 1″
The large anvil gauging surfaces of the type ‘C’ ensures a long life.

SPECIFICATION:
Adjustable Limit Snap Gage
Hardened Steel Anvils
Measuring Range: 0″-1″

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026

Related Products: Ring Gauge, Go / No Go Gauges, Gauge Block
