Current to Pressure Measurement Trainer
Product Code : EL-MAILE-10805

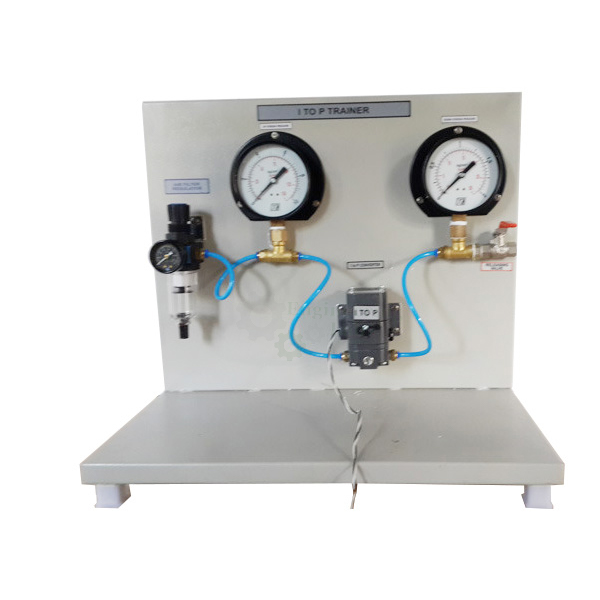

The Current to Pressure Trainer.
Two pressure gauges are fitted one at the input side and the other at the output of the current to P converter.
A current source with digital display is provided to excite the current to P converter.
This setup comprises of a I to P converter fitted on a base.
A constant air supply should be provided to the system at 20 PsI Pressure from a standard compressor.
FEATURES:
The whole system is self-contained with all accessories included.
The instrument is enclosed in a tapered fiberglass box and all necessary test points are brought out with schematic circuitry for understanding the working of the instrument.
SPECIFICATION:
I to P: input 4 to 20mA. Output 3 to 15 PSI
Air Pressure Required: 30 to 80 PSI continues.
Pressure Gauge: Bourdon pressure gauge 30 PSI 4”-2 No’s
Current Force
Display 3½ digits LED display.
Current o/p 4 to 20mV Variable by a potentiometer.
Resolution: 0-1mA
Accessories Supplied Air Regulator with fitter.
Necessary tubing’s and cable.
Optional Air compressor at extra cost
Power required for operation
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
LxWxH: 500x400x300mm
Weight: approx. 22kg
