Speed Measurement Trainer
Product Code : EL-MAILE-10810
Quick Answer: The Speed Measurement Trainer is a rotational-speed measurement trainer built around a fractional-HP motor with a speed regulator driving a 60-tooth tone wheel, together with photo-reflective and magnetic pickup sensors and a digital speed indicator, all fitted rigidly on a base. Three different speed sensors, a photoelectric sensor, an electromagnetic proximity sensor, and a DC tachometer generator, are mounted so that they measure the same rotating shaft speed at once, letting students directly compare how each sensor type performs, with motor speed control provided via a front-panel potentiometer (approx. 1500 RPM on a 12V DC supply).

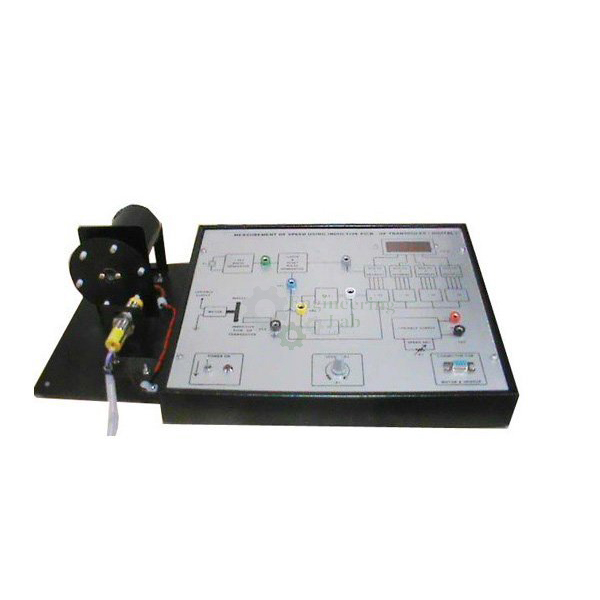

The speed measurement trainer equipment comprises photo reflective and magnetic pickup sensors, a fractional HP motor with speed regulator, and tone wheels of 60 teeth fitted rigidly on a base with a digital speed indicator. The speed sensors used are: Photoelectric sensor, Electromagnetic Proximity sensor, and DC Tachometer Generator. The different sensors are mounted in a position where they can measure the same speed of the rotating shaft; as a result the student will be able to note the differences between them.
| FEATURES | |
|---|---|
| Fine quality | |
| Easy to use | |
| Easy to install | |
| SPECIFICATION | |
| Copper wheel with 60 slots Tone Wheel MS Gear wheel of 60 Teeth, | |
| Copper wheel with 60 slots Sensor Non- Contact Magnetic Pickup & Op | |
| Motor Capacity | 12V DC Motor Max. |
| Motor Speed | 1500 RPM (approx.) |
| Motor input Supply12V DC. | |
| Motor Speed Control Using POT. | |
| MS Gear wheel of 60Teeth, | |
| Power required for operation | |
| 230V, 50Hz, 1 phase | |
| 230V, 60Hz, 1 phase | |
| DIMENSIONS AND WEIGHT | |
| LxWxH | 400x300x300mm |
| Weight | approx. 15kg |
