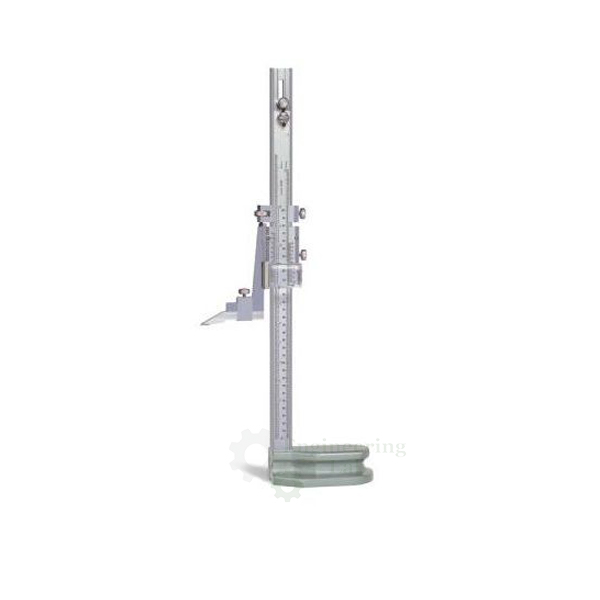

Height gauges, sometimes referred to as gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units.
Turning a calibrated screw, or one or more feed wheels changes the vertical position of the gauge and its attached pointer.
Recorded rotations are read from a scale, a dial, counters, and/or an electronic display.
A screw clamp holds the pointer to the gauge.
The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a work piece by scratching its surface.
On compatible units, an electronic touch-signal probe may replace the scriber.
Height gauges are typically used in manufacturing, machining, and mechanical engineering.
FEATURES:
Lightweight unit suitable for measuring small objects
Measurement range of 0 to 200 mm, and precise to 0.02 mm
Vernier scale for precise measurement in fine units
Hand-operated slider with fine-adjustment carriage for precise feed
Carbide-tipped scriber for hardness and long life
SPECIFICATION:
Gauge Range: 0-200mm
Accuracy: 0.03mm
Resolution: 0.02mm
Mass: 1.4kg
