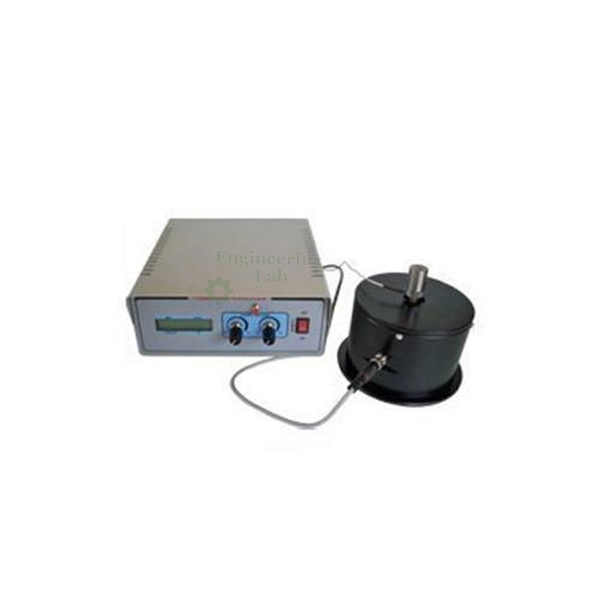

Vibration Measurement Trainer
Product Code : EL-MAILE-10814
Quick Answer: The Vibration Measurement Trainer uses a vibration generator (capacity 5 Newton) with a vibration exciter to produce controllable vibrations, sensed by a piezoelectric accelerometer and shown on a digital display (4½ digit, 16 X 2 line LCD) that reads displacement, velocity, acceleration and frequency. The whole system is self-contained with all accessories included, enclosed in a tapered fiberglass box with all necessary test points brought out with schematic circuitry for understanding the working of the instrument.
The Vibration Measurement Trainer comprises of a vibration generator of capacity 5 Newton with a vibration exciter. A piezoelectric accelerometer is used to sense the vibration, and a digital display unit displays the displacement, velocity & acceleration sensed by the sensor.
FEATURES:
The whole system is self-contained with all accessories included.
The instrument is enclosed in a tapered fiberglass box and all necessary test points are brought out with schematic circuitry for understanding the working of the instrument.
SPECIFICATION:
Vibration Source: Vibration generator capacity 5 Newtons.
Power Amplifier: 0 to 10V P-to-P variable by potentiometer.
50 to 1000Hz Variable by potentiometer.
Indicator 4½ digit 16 X 2 line LCD display.
Parameter Displayed Acceleration, Velocity, Displacement and frequency.
Vibration Sensor: Accelerometer (piezo electric crystal).
Power required for operation
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
LxWxH: 400x300x300mm
Weight: approx. 25kg
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
