Climatic Chambers
Product Code : EL-ATLE-10496

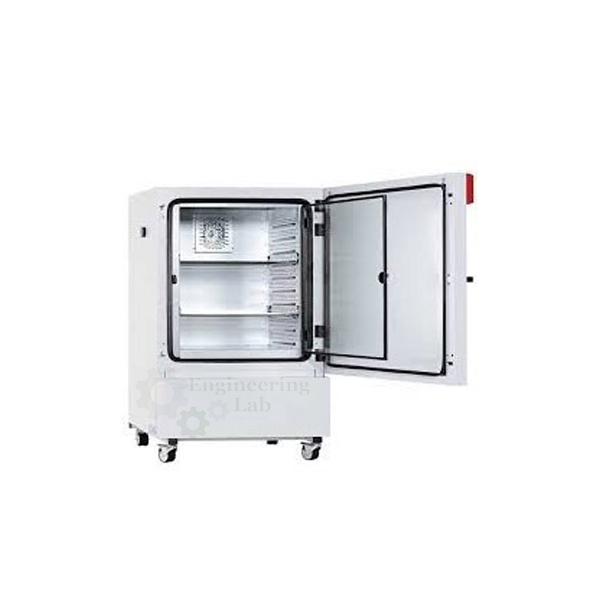

Climatic Chambers (code EL-ATLE-10496) are multipurpose test chambers for aggregates, cement, concrete, bricks, blocks, asphalt and other construction materials. They have a controller with a cycle programmer for 50 programs and 1000 segments, a movable PT100 temperature sensor, a humidity sensor reading up to RH 100%, an accuracy of ±1 °C and ±5 %RH, a CFC free cooling group and 60 mm thick high density polyurethane insulation.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Multipurpose testing of aggregates, cement, concrete, bricks, blocks, asphalt and other construction materials |
| Controller | Cycle programmer for 50 programs and 1000 segments |
| Accuracy | ±1 °C and ±5 %RH |
| Data options | Optional internal data recording facility, data output port and dedicated PC software |
| Standards | EN 1367-1, EN 196-1 |
| Thermostatic unit | |
| Cooling group | CFC free; conditions the air circulating in the cabinet |
| Cooling circuit | Entirely copper, with dewater/receiver filter, spy glass to verify the passage of Freon, high pressure manostat and inlet connectors |
| Evaporator | Internal angles rounded for cleaning |
| Insulation | High density polyurethane, 60 mm thick |
| Shelves | On stainless steel guides capable of holding heavy specimens |
| Layout | Cooling system and controls at the top of the cabinet for inspection and maintenance |
| Control console | |
| Display | Large digital display with switches and alarm LEDs |
| Control unit | Multifunction; displays set points and absolute output values simultaneously |
| Sensors | |
| Temperature sensor | PT100, movable inside the cabinet; can also be located inside the test sample |
| Humidity sensor | Measures humidity up to RH 100% |
| Supply | |
| Product code | EL-ATLE-10496 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Climatic Chambers Used For?
Construction materials are often tested after exposure to set temperature and humidity conditions, for example freeze-thaw cycles on aggregates or moist curing of cement specimens, and a climatic chamber produces those conditions to a programme. The operator loads the specimens on the shelves, places the PT100 sensor in the cabinet or inside a sample, and enters a cycle on the programmer, which provides 50 programs and 1000 segments; the chamber then heats, cools and controls humidity through the cycle, with alarm LEDs on the console. Results can be logged with the optional data recording and PC software. The standards listed are EN 1367-1 and EN 196-1.
What to Specify When Ordering
- Quantity — the number of chambers required.
- Data options — whether the internal data recording facility, data output port and dedicated PC software are wanted.
Frequently Asked Questions
Which materials can be tested in the Climatic Chambers?
They are multipurpose chambers for testing aggregates, cement, concrete, bricks, blocks, asphalt and other construction materials under controlled temperature and humidity.
How many test programs can be stored?
The controller's cycle programmer handles 50 programs and 1000 segments, so multi-stage temperature and humidity cycles can be run without manual changes.
What accuracy is given for temperature and humidity?
The chambers have an accuracy of ±1 °C for temperature and ±5 %RH for humidity, and the humidity sensor measures up to RH 100%.
Where can the temperature sensor be placed?
The PT100 sensor is movable within the cabinet and can also be placed inside the test sample itself, as some test methods require.
How is the cooling system built?
The CFC free cooling group has an all-copper circuit with a dewater/receiver filter, a spy glass to check the passage of Freon, a high pressure manostat and inlet connectors.
Which standards are listed for the chambers?
The standards listed are EN 1367-1, for freeze-thaw resistance of aggregates, and EN 196-1, for cement strength testing.
OEM Manufacturer
Buyers of the Climatic Chambers deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
