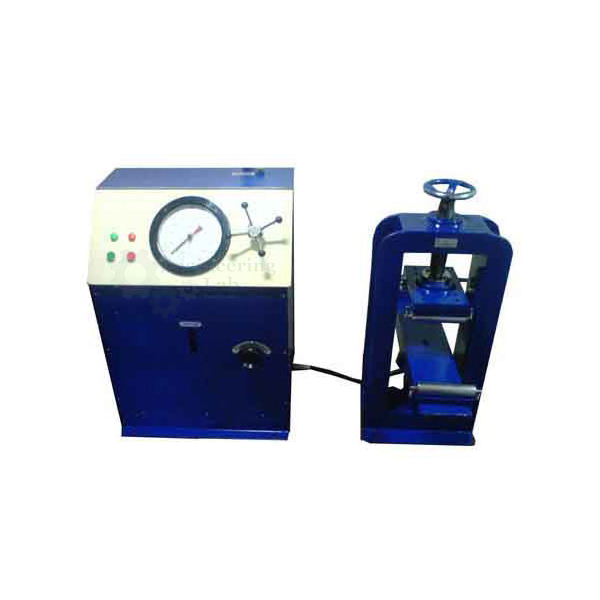

Flexure Testing Machine Electrical Cum Hand Operated

Product Code : EL-CTLE-10930

Flexure Testing Machine Electrical Cum Hand Operated (code EL-CTLE-10930) is a flexural strength testing machine that can be loaded electrically or by hand, with a pressure gauge reading 0–100 kN × 1 kN. Its pumping unit carries the gauge, an on/off switch and a slow/fast lever for the loading rate on the front panel, a micro switch and relay inside the gauge guard against overloading, and both a hand pumping unit and a separate electrically-cum-hand-operated unit in a cabinet are supplied.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Flexure Testing Machine Electrical Cum Hand Operated Used For?

Flexural strength tests load a concrete beam in bending until it breaks, and the failure load is converted to a modulus of rupture used in the design of pavements and slabs. With this machine the operator switches on the electrically-cum-hand-operated pumping unit and selects slow or fast loading with the lever, or works the hand pumping unit when hand operation is preferred, while watching the load on the 0–100 kN gauge. If the load reaches the overload limit, the micro switch and relay inside the gauge act to protect the unit.

What to Specify When Ordering

• Quantity — the number of electrical cum hand operated flexure machines required.

Frequently Asked Questions

What load range does the gauge have?
The pressure gauge reads from 0 to 100 kN in 1 kN divisions and is mounted on the front panel of the pumping unit.

How is the rate of loading controlled?
A slow/fast lever on the front panel of the pumping unit, next to the on/off switch, controls the rate at which load is applied.

How is the machine protected from overloading?
A micro switch and a relay are fitted inside the pressure gauge, and together they protect the unit from being overloaded during a test.

Can it be used without electric power?
Yes. A hand pumping unit is supplied in addition to the electrically-cum-hand-operated pumping unit, and a facility for hand operation is provided.

How is the load gauge calibrated?
The load gauge is calibrated against a proving ring, a reference device used for checking the readings of testing machine gauges.

How can the machine be ordered?
Use the Add To Cart enquiry button on this page, or send the number of machines and the delivery location through the contact page form.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Flexure Testing Machine Electrical Cum Hand Operated at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
