Longitudinal Compressometer

Longitudinal Compressometer

Product Code : EL-CTLE-10304

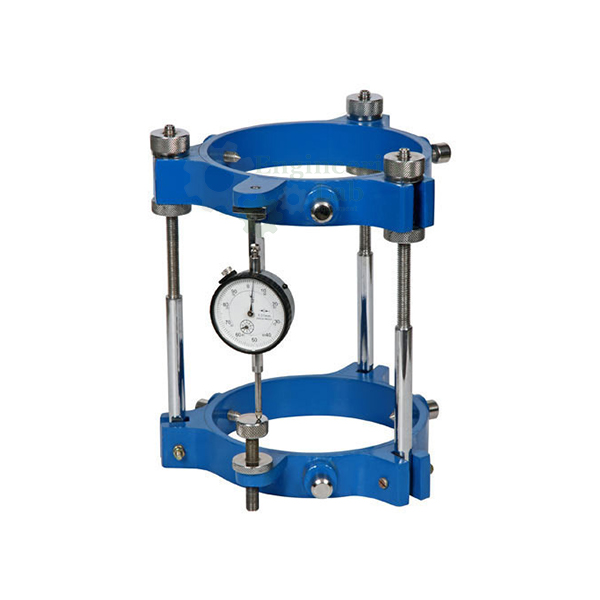

Quick Answer: The Longitudinal Compressometer is a frame-type instrument with a bottom ring and a top ring fitted with tightening screws, used to firmly clamp the compressometer over a cylinder specimen. A dial gauge (.002mm x 5mm) is mounted on the upper ring with its tie resting on an anvil, and the gauge can be zeroed by adjusting the anvil screw. It is supplied in a wooden carrying case and manufactured to ASTM C 469.

The instrument consists of a frame with a bottom ring and a top ring with tightening screws to firmly clamp the compressometer over the cylinder. A dial gauge, .002mm x 5mm, is mounted on the upper ring, with the tie of the dial gauge resting on an anvil, and the zero on the dial gauge can be set by adjusting the anvil screw. It is supplied in a wooden carrying case.

Standards: ASTM C 469

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026
