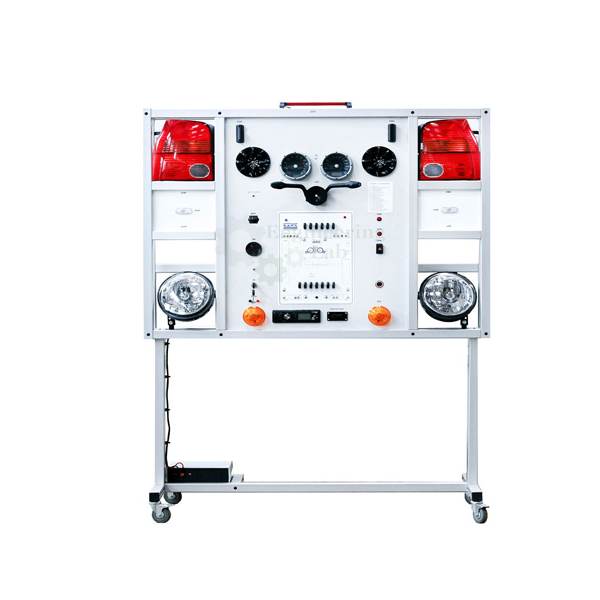

Lighting Training Board Simulator
Product Code : EL-AELE-10733
The Lighting Training Board Simulator is a great educational tool that allows students to learn the structure of lighting system, study its components, and perform various measurements, tests and other diagnostic procedures.
The training test rig can be used as visual aid for students of mechanical subjects to demonstrate and explain the structure and components.
Also, automotive training stand can be used as a educational equipment for the brake system repair and service procedures.
FEATURES:
Ability to measure electrical signal parameters of system component;
Control unit diagnosis
Reading/erasing fault codes
Diagnosis through OBD 16–pin diagnostic connector
Displaying the operating system parameters (live data)
Activating the actuators (Depends on the control unit)
SPECIFICATIONS:
Adjustable beam levels with the motors of front headlights
Fully functional lighting training system is installed in a mobile aluminum frame.
Electric wiring diagram with built – in banana plug jumpers for measurements and connecting or disconnecting the components
Possible adjustments training with the headlight tester (optional)
Electronic control unit (ECU) identification;
12 V battery
220/12 V Power supply unit
Automotive oscilloscope
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1800 x 1400x 500mm
Weight (approx.): 80KG
