Working Model of MPFI Petrol Engine
Product Code : EL-AELE-10747

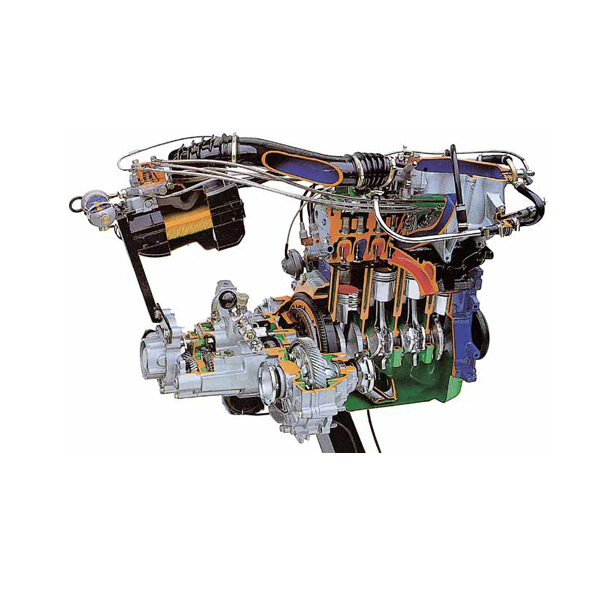

Working Model of MPFI Petrol Engine (code EL-AELE-10747) is a sectioned teaching engine showing multi-point fuel injection on a petrol engine, in which one injector per cylinder in the intake manifold delivers an exact quantity of fuel at the right time, used as a visual aid and for MPFI repair and service training. The 4 in-line cylinder engine has an overhead camshaft with toothed-belt distribution, a 5 speed gearbox with reverse and integrated differential, a Lambda probe in the exhaust manifold and a displacement given as 1600/1800/2000 cc.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Visual aid for the structure and components of an MPFI engine; MPFI system repair and service training |
| Fuel system | Multi-point electronic injection with throttle; one injector per cylinder in the intake manifold, all connected to a common higher-pressure input |
| Engine | 4 cylinders, in-line |
| Displacement | 1600/1800/2000 cc |
| Camshaft | Overhead camshaft (OHC) |
| Distribution | By means of a toothed belt |
| Gearbox | 5 speeds and reverse, with integrated differential |
| Exhaust | Exhaust manifold with Lambda probe |
| Mounting | MPFI engine model installed in a mobile solid frame |
| Sectioning | Various parts cross-sectioned to show internal operation |
| Colour coding | Different colours for the parts, cross-sections, lubricating circuits, fuel system and cooling system |
| Finish | Many parts chromium plated and galvanised |
| Operation | Manual or electrical |
| Layout | On base with wheel |
| Dimensions | Approx. 900 × 800 × 1000 mm (L × W × H) |
| Weight | Approx. 155 kg |
| Product code | EL-AELE-10747 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Working Model of MPFI Petrol Engine Used For?
Multi-point injection meters fuel separately for every cylinder of a petrol engine: an electronic control unit opens each injector in the intake manifold for a set time, so the mixture can be matched to load, speed and the oxygen reading from the Lambda probe. On the cutaway, students follow fuel from the common supply to the individual injectors and air past the throttle into the manifold, then see how the overhead camshaft and toothed belt time the valves. The model also shows the 5 speed gearbox with integrated differential, and it is used for practising MPFI repair and service procedures.
What to Specify When Ordering
- Quantity — the number of MPFI engine models to be supplied.
- Displacement — the engine size wanted from 1600, 1800 and 2000 cc.
Frequently Asked Questions
How does multi-point fuel injection work?
Each cylinder has its own injector placed in the intake manifold, and all injectors are connected to a common supply at higher pressure, so an exact quantity of fuel reaches each cylinder at the right time.
What displacement does the engine have?
The displacement is given as 1600/1800/2000 cc for the 4 in-line cylinder engine, which has an overhead camshaft driven through a toothed belt.
Is a gearbox included?
Yes, the model includes a gearbox with 5 speeds and reverse and an integrated differential, alongside the engine and its exhaust manifold with Lambda probe.
Can it be operated electrically?
Yes, operation is either manual or electrical, and the whole engine model is carried in a mobile frame so it can be wheeled into position.
Can it be used for repair training?
Yes, besides serving as a visual aid for the structure and components of the engine, it can be used for MPFI system repair and service procedures.
How can this engine model be ordered?
Send an enquiry with the Add To Cart button on this page, or use the contact page to give the quantity and where it is to be delivered.
