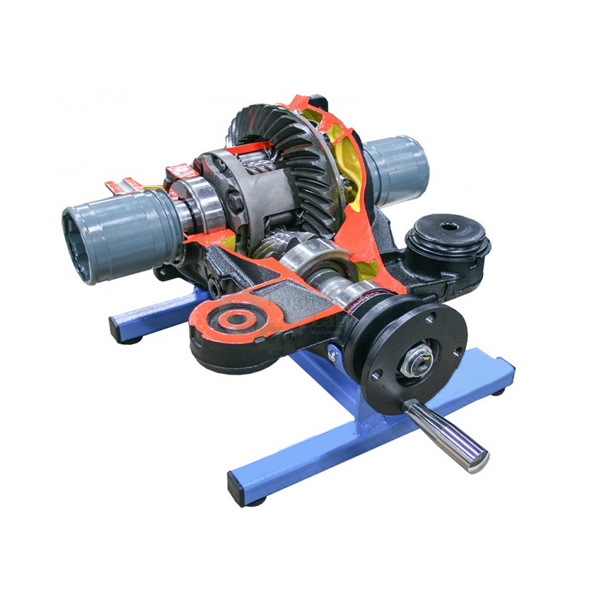

Working Model of Torsion Differential
Product Code : EL-AELE-10750
Quick Answer: The Working Model of Torsion Differential is an accurate, cutaway section of a torsion bevel gear pair differential assembly that demonstrates the complex differential operation which works on the worm screw principle. It is professionally painted in different colours to distinguish parts and cross-sections, and many components are chromium-plated and galvanized for longer life, making it a visual aid for mechanical engineering students to study the structure and components.
This is an accurate section of a torsion bevel gear pair differential assembly, showing the complex operation of the system, which works according to the worm screw principle. Many parts have been chromium-plated and galvanized for a longer life.
This cutaway model is carefully sectioned for training purposes and professionally painted with different colours to better differentiate the various parts and cross-sections. The training model can be used as a visual aid for students of mechanical subjects to demonstrate and explain the structure and components, and can also be used as educational equipment for the MPFI system repair and service procedures.
| FEATURES | |
|---|---|
| Differential working model ideal for classroom demonstrations | |
| Operated | Manually |
| Equipment Layout | On Base with wheel |
| Fine finish | |
| Cross-sectioned various parts to show internal operation | |
| Simple operations | |
| Functional accuracy | |
| SPECIFICATION | |
| Fully functional, Drive Shaft differential system is installed in a mobile solid frame. | |
| Manually operate the mechanism | |
| Sturdy powder coated metal stand | |
| DIMENSIONS AND WEIGHT | |
| L x W x H (approx.) | 400 x 400 x 400 mm |
| Weight (approx.) | 25 kg |
For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
