Section Model Two Stroke & Four Stroke Petrol Engine

Section Model Two Stroke & Four Stroke Petrol Engine

Product Code : EL-AELE-10737

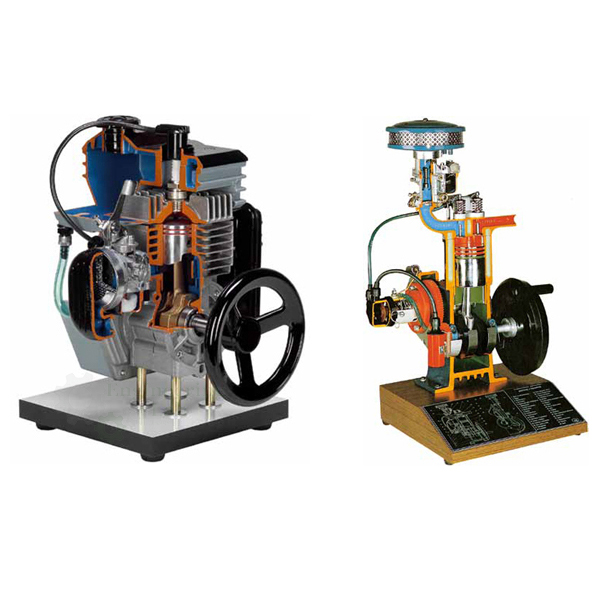

Quick Answer: This Section Model of Two Stroke & Four Stroke Petrol Engine is a cutaway training model that represents a real 2-stroke and 4-stroke petrol engine, cut in every detail including the carburetor and ignition system. The suction-exhaust-transfer channels are especially highlighted.

The model is carefully sectioned for training purposes and professionally painted in different colours to clearly differentiate the various parts, cross-sections, lubricating circuits, fuel system, and cooling system. Many parts are chromium-plated and galvanized for longer life.

FEATURES:
Operated: Manually (Through a Crank Handle)
Equipment Layout: On Base
Fine finish
Simple operations
Functional accuracy

SPECIFICATIONS:
TWO STROKE CUT-SECTION ENGINE:
Air cooling
Piston displacement 48 cc
Plug point and magnet flywheel ignition
Box carburetor

FOUR STROKE CUT-SECTION ENGINE:
Air filter
Displacement: 160cc
Camshaft in the crank case
Overhead valves
Rpm regulator
Oil pump
Carburetor
Silencer
Tank

DIMENSIONS AND WEIGHT:
L x W x H (approx.): 800 x 600 x 650 mm
Weight (approx.): 55kg

For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
