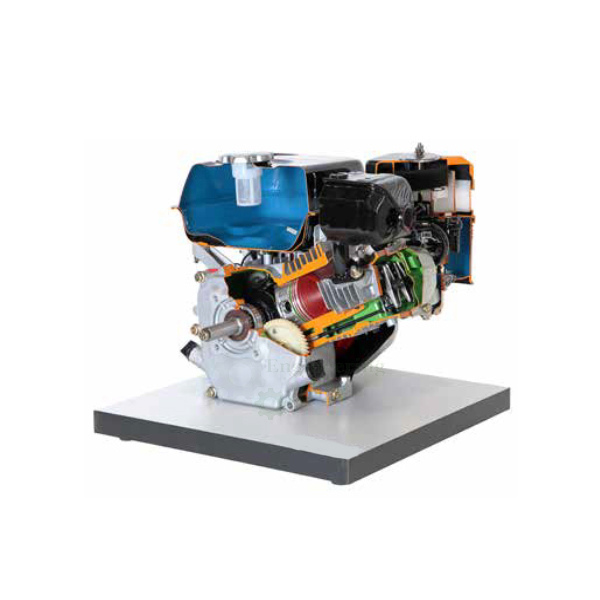

Cut Model of Single Cylinder Four Stroke Petrol Engine

Cut Model of Single Cylinder Four Stroke Petrol Engine

Product Code : EL-AELE-10731

Quick Answer: The Cut Model of Single Cylinder Four Stroke Petrol Engine is a sectioned training model used to show the internal parts and working of a single cylinder four stroke petrol engine. The engine has a displacement of 160cc and a power of 6 hp, with overhead valves and the camshaft in the crankcase.

The sectioned engine includes the carburetor, air filter, silencer, tank, rpm regulator and oil pump, so the fuel, intake, exhaust and lubrication parts can be shown together with the overhead valve gear. The model is laid out on a base and is operated manually through a crank handle, which lets the moving parts be turned by hand during a demonstration. It measures approx. 480 x 480 x 500 mm and weighs approx. 35 kg.

FEATURES
OperatedManually (Through a Crank Handle)
Equipment LayoutOn Base
SPECIFICATION
Displacement160cc
Power6 hp
Camshaft in the crankcase
Carburetor
Air filter
Silencer
Tank
Overhead valves
Rpm regulator
Oil pump
DIMENSIONS AND WEIGHT
L x W x H (approx.)480 x 480x 500mm
Weight (approx.)35KG

For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: October 2026
