Angle Plate

Angle Plate

Product Code : EL-MAILE-10822

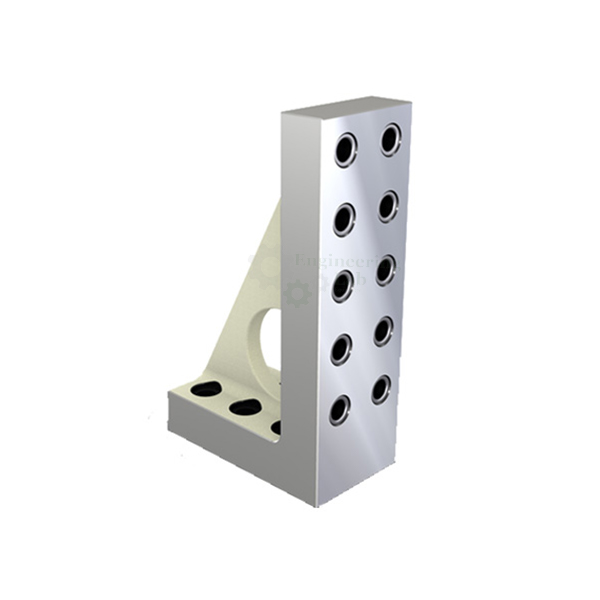

Quick Answer: The Angle Plate is a welded angle plate (6 inch x 5 inch x 4-1/2 inch) made from cast iron that has been stabilized and stress relieved to prevent further movement or distortion, with two faces square within 0.002 inch per 6 inch, and built to BS 5535 Grade B. It is used to hold a work piece square to the table during marking-out operations, with slotted (“T” bolt) holes machined into its surfaces to enable secure attachment of work pieces to the plate, and of the plate to a fixture base, machine bed, or worktable. Adjustable angle plates are also available for work pieces that need to be inclined, usually towards a milling cutter.

The angle plate material has been stabilized to prevent further movement or distortion. Angle plates also may be used to hold the work piece square to the table during marking-out operations. Slotted holes or “T” bolt slots are machined into the surfaces to enable the secure attachment or clamping of work pieces to the plate, and also of the plate to the worktable. Adjustable angle plates are also available for work pieces that need to be inclined, usually towards a milling cutter.

FEATURES
Manufactured from close-grained cast iron.
The slots allow work to be easily fastened to the plate, and the plate to a fixture base or machine bed.
BS5535 Grade B
SPECIFICATION
Welded angle plate
6 inchx5 inchx4-1/2 inch
Made of high tensile cast iron
Stress relieved
Two faces square within 0.002 inch per 6 inch

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Surface Plate, Engineering Square, Combination Square
