Depth Gauge Digital

Depth Gauge Digital

Product Code : EL-MAILE-10824

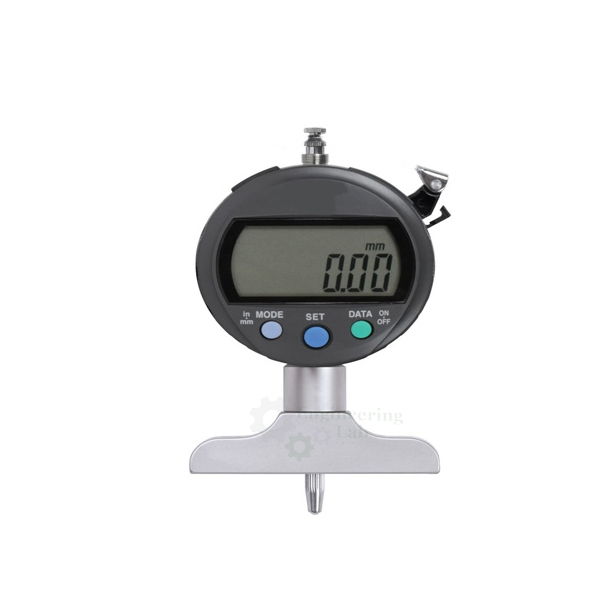

Quick Answer: The Depth Gauge Digital is a digital measuring instrument used for depth measurement, with a spring loaded plunger, a steel probe head and readings shown on a large LCD in inch or mm. It has a measuring range of 0-1 inch or 0-25.4 mm, a resolution of .0005″ / .01 mm and an accuracy of .001″.

The zero button lets the gauge be zeroed at any point in the probe travel, so readings can be taken from any reference position. The gauge converts between SAE and metric units, switches off after 5 minutes of non use and is powered by a CR2032 button battery. A lug on the back allows it to be converted to an indicator, the base size is 2.75 inches by 0.30 inches and the steel probe head diameter is 0.080 inches.

FEATURES
Base Size2.75 inches by 0.30 inches
Steel probe Head Diameter0.080 inches
Measuring Range0-1 inch or 0-25.4 mm
Resolution.0005″ / .01 mm
Zero button so can zero at any point in probe travel
Spring loaded plunger
SPECIFICATION
Resolution.0005″ / .01mm
Accuracy.001″
Large LCD for error-free reading in inch or mm
On/off switch and powers off after 5 minutes of non use
Converts between SAE and metric
Spring loaded plunger
Lug on back to convert to indicator
Zero button so can zero at any point in probe travel
Powered by CR2032 button battery

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: October 2026

Related Products: Depth Gauge Dial Type, Vernier Height Gauge, Digital Height Gauge
