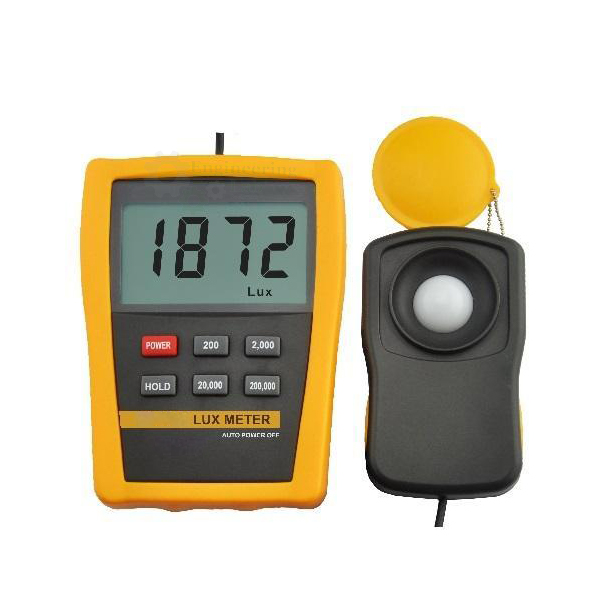

Lux Meter

Lux Meter

Product Code : EL-MAILE-10819

Quick Answer: A Lux Meter is an instrument that measures the brightness of light falling on an object at a particular area – in other words, it gauges the intensity at which brightness appears to the human eye. This Lux Meter measures illumination across 3 ranges, from 0 to 50,000 Lux, with an LCD display and Low Battery Indication, a 4000-count display with a 61-segment bar graph, auto-ranging, automatic power off, peak hold, and maximum data hold, and lets the user select between FC and Lux units; accuracy is +5 percent of reading.

A lux meter is an equipment that measures brightness of falling on an object at a particular area. In other words, it properly gauges the intensity at which brightness appears to the human eye. We are engaged in offering Lux Meter, Measures Illumination with 3 Ranges. Ranges from 0 – 50 000 Lux. LCD display and Low Battery Indication.

FEATURES:
4000 counts with bar graph 61 segments
Auto-ranging
Automatic power off
Peak hold
Battery power indication
Maximum data hold
User selectable FC/Lux

SPECIFICATION:
Accuracy: +5 percent of reading
Power Source: 1×9.0V
Receiving Light: Silicon of photo electricity diode
Dimension Photo Detector: 82 (H) x 55 (W) x 7 (D) millimeter
Meter Body: 148 (H) x 70 (W) x 40 (D) millimeter
Standard Accessories: Soft carrying case, manual.

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026

Related Products: Sound Meter, Hygrometer Digital, Aneroid Barometer
