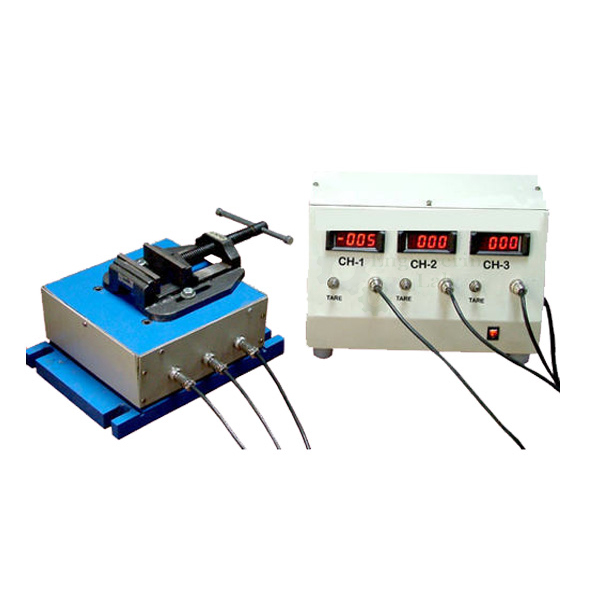

Milling Tool Dynamometer

Milling Tool Dynamometer

Product Code : EL-MAILE-10866

A unique milling cutter dynamometer has been designed and developed which enables radial and tangential forces acting on a cutter tooth to be recorded throughout its cutting action.
The research value of this instrument has been demonstrated in a series of comparative experiments involving up-cut and down-cut milling.

FEATURES:
Rigid construction & Compact Unit.
Easy in handling & Digital force indicators to measure three forces simultaneously.
Assessment of cutting forces by giving due consideration to various parameters like depth of cut, material, cut, material, speed and feed.

SPECIFICATION:
Capacity: 500Kg in X, Y & Z direction.
Mounting Type: 350(L) x 350(W) x 100(H) mm. To mount on the machine bed.
Sensor Type: Strain gauge based 350- Ω
Zero Balancing: Corse and fine potentiometer on front panel.
Power: 230V 50 Hz
Enclosure: Powder coated metal box.400 (L) x300 (W) x100H
Job Mounting: Mounting holes M10 provided to fix machine vise.
Display: 3 independent for x, y & z force. LED display 3½ digits.
Resolution: 1Kg for all the 3 Components.
Recorder O/Analog output for connect any recorder or data logger provided.
Accessories: Self centering vise 4”-1No.
Optional: RS232 Interface to connect computer for data logging with LCD display.
