Alternator Trainer
Product Code : EL-AELE-10718

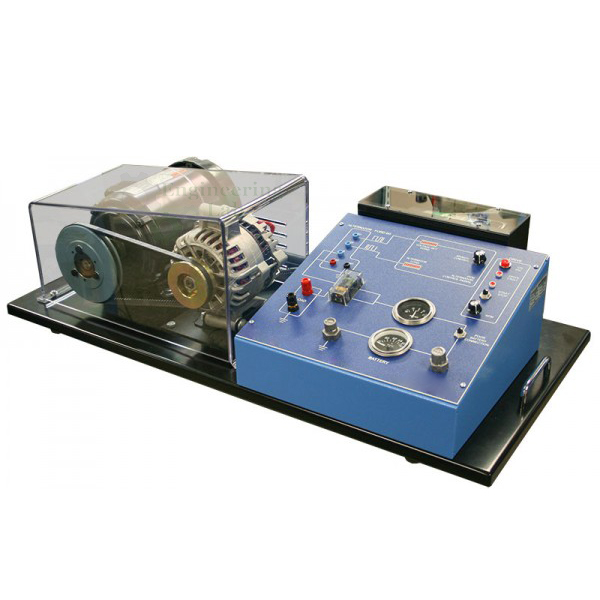

Alternator Trainer (code EL-AELE-10718) is an instructor's demonstration unit for automotive charging systems that use external voltage regulation, laid out with a synoptic diagram and its control and instrument units. It carries an alternator driven through an enclosed drive belt by a 120 V AC electric motor, a separate voltage regulator, a battery terminal block, a built-in voltmeter and ammeter and test points for diagnosis, and it measures approx. 800 × 600 × 500 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Demonstrating automotive charging systems with external voltage regulation |
| Regulation | External |
| Main parts | Alternator, driving motor with AC drive, drive belt, battery terminal block, voltage regulator and associated wiring |
| Drive | 120 V AC electric motor |
| Instruments | Built-in voltmeter and ammeter |
| Guarding | Drive belt enclosed in a safety shield; protective cover |
| Diagnosis | Test points for diagnosis |
| Layout | Synoptic diagram with the control and instrumentation units laid out on it |
| Safety equipment | Fitted with the safety equipment required for demonstration |
| Dimensions | Approx. 800 × 600 × 500 mm (L × W × H) |
| Weight | Approx. 65 kg |
| Product code | EL-AELE-10718 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Alternator Trainer Used For?
An alternator turns mechanical drive from the engine into electrical current that recharges the battery and supplies the electrical loads, while the voltage regulator controls the field current so that the output voltage stays within limits as speed and load change. With an external regulator, that control unit sits outside the alternator, where students can reach and test it. The instructor starts the motor to drive the alternator, students read the output voltage and current on the built-in meters, and at the test points they practise the usual charging system checks on the alternator, regulator and wiring.
What to Specify When Ordering
- Quantity — the number of alternator trainers to be supplied.
Frequently Asked Questions
What does external regulation mean on this trainer?
The voltage regulator is a separate unit wired to the alternator rather than built into it, so students can see and test the regulator and its connections on their own.
What drives the alternator?
A 120 V AC electric motor drives the alternator through a drive belt. The belt is enclosed in a safety shield, and the unit also has a protective cover.
Which instruments are fitted?
A voltmeter and an ammeter are built in, so the charging voltage and current can be read during a demonstration, and test points are provided for diagnosis.
What parts make up the trainer?
It contains an alternator, a driving motor with AC drive, a drive belt, a battery terminal block, a voltage regulator and the associated wiring, arranged with a synoptic diagram.
What size is the unit?
Approximate dimensions are 800 × 600 × 500 mm (L × W × H), with an approximate weight of 65 kg.
OEM Manufacturer
Buyers of the Alternator Trainer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests automobile engineering cut-section models, working models and trainers, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
