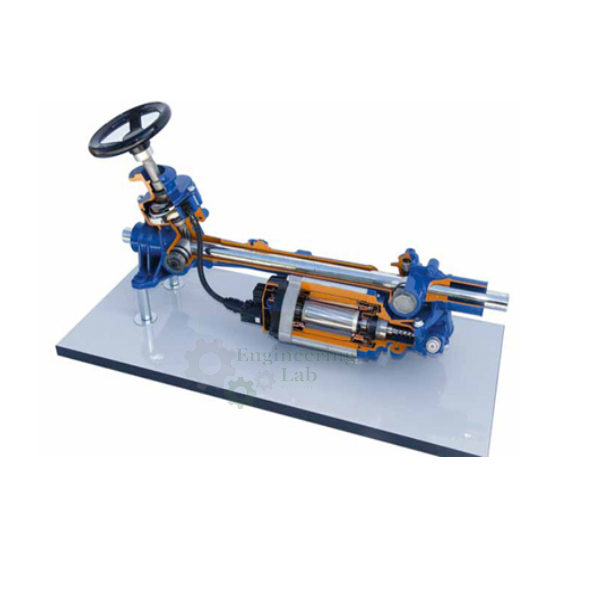

Cut Model of Common Rack And Pinion Steering
Product Code : EL-AELE-10728
Quick Answer: The Cut Model of Common Rack and Pinion Steering is a cutaway training model of a rack and pinion steering mechanism, sectioned to show its internal parts and cross-sections. It is professionally painted with different colours to differentiate the components and mounted on a tubular frame, with many parts chromium-plated and galvanized for a longer life.
The cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. The model is mounted onto a tubular frame, and a suitable imported colour painting is carried out along with a Miracle coating for extra gloss and shine. Many parts have been chromium-plated and galvanized for a longer life.
The painting is carried out in such a way that different colors are used for different components, such as identification of the sectioned area, according to a colour code for easy identification of different systems and mechanisms. All the hardware and gears are suitably electroplated.
FEATURES:
Operated: Manually (Through a Crank Handle)
Equipment Layout: On Base
Fine finish
Functional accuracy
Simple operations
SPECIFICATION:
Connecting pipes
Rack type steering box
Hydraulic pump
Oil tank with relevant filter
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1000 x 600 x 550 mm
Weight (approx.): 25kg
For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026
