Fully Functional Cut Section Model of Chassis
Product Code : EL-AELE-10732

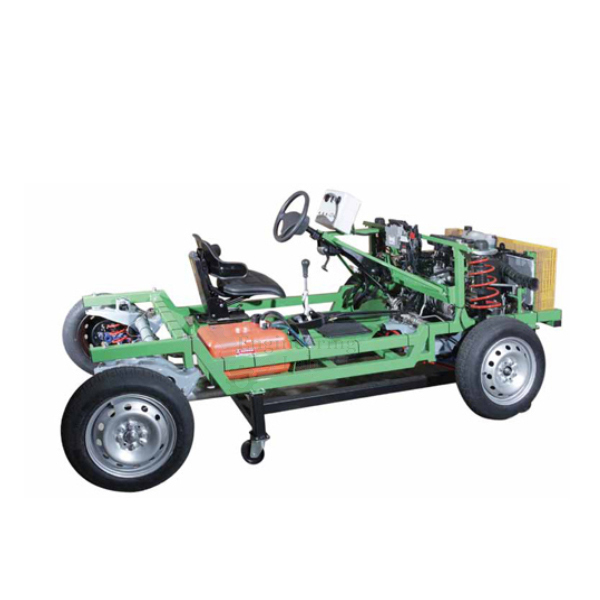

Fully Functional Cut Section Model of Chassis (code EL-AELE-10732) is a motorised chassis trainer built from a medium displacement vehicle, used to study its main components, repair operations and diagnostics through the OBD socket. Its 4 cylinder, 4 stroke 1242 cc petrol engine with multipoint electronic injection and electronic ignition drives the front wheels through a gearbox with 5 forward gears and reverse, and the engine, clutch, brakes, cooling, lubrication, suspension, electric and exhaust systems all work on a wheeled stand.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Study of the main components, repair operations and diagnostics through the OBD socket |
| Base vehicle | Medium displacement vehicle; mechanical parts revised and assembled on a chassis |
| Working systems | Engine, gearbox, clutch, brakes, lubricating circuit, cooling system, injection, ignition, suspensions, electric system and exhaust all completely functional |
| Assembly | Each part can be assembled and disassembled on the chassis |
| Operation | Motorised |
| Layout | On stand with wheels; tubular frame |
| Engine | 4 cylinder, 4 stroke petrol engine |
| Displacement | 1242 cc |
| Fuel injection | Multipoint electronic injection |
| Ignition | Electronic |
| Fuel supply | Electric fuel pump; tank |
| Exhaust | Catalytic silencer |
| Cooling | Radiator with electric fan |
| Gearbox | 5 forward gears and reverse |
| Drive | Front wheel drive |
| Brake servo | Depression servo-brake |
| Front brakes | Disc brakes |
| Rear brakes | Drum brakes |
| Hand brake | Fitted |
| Front suspension | McPherson |
| Rear suspension | Independent wheels with oscillating arms |
| Electrical | Battery; dashboard |
| Diagnostic socket | OBD diagnostic socket |
| Colour coding | Different colours to a colour code for components and sectioned areas |
| Finish | Colour paint with gloss coating; hardware and gears electroplated |
| Dimensions | Approx. 3200 × 1400 × 1400 mm (L × W × H) |
| Weight | Approx. 380 kg |
| Product code | EL-AELE-10732 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Fully Functional Cut Section Model of Chassis Used For?
On a running chassis the systems of a car can be seen working together: the electric fuel pump and multipoint injection feed the engine, the radiator and electric fan cool it, and its drive passes through the clutch and gearbox to the front wheels. With the engine running, the instructor demonstrates gear selection and braking through the depression servo, front discs and rear drums, and the class carries out diagnostics through the OBD socket. Because each part can be removed and refitted on the chassis, students also practise repair operations on the engine, gearbox, brakes and suspension.
What to Specify When Ordering
- Quantity — the number of running chassis models needed.
Frequently Asked Questions
What engine is fitted?
A 4 cylinder, 4 stroke petrol engine of 1242 cc with multipoint electronic injection, electronic ignition, an electric fuel pump, a radiator with electric fan and a catalytic silencer.
Which systems are working on the chassis?
The engine, gearbox, clutch, brakes, lubricating circuit, cooling system, injection, ignition, suspensions, electric system and exhaust are all completely functional.
What brake and suspension layout does it have?
Braking is by a depression servo-brake with front discs, rear drums and a hand brake; the front suspension is McPherson and the rear uses independent wheels with oscillating arms.
How are faults diagnosed?
Diagnostics are carried out through the OBD diagnostic socket on the chassis, which also carries a dashboard and battery for the electric system.
How large is the trainer?
It is mounted on a stand with wheels and measures approximately 3200 × 1400 × 1400 mm, with a weight of about 380 kg.
What information is needed for an export shipment?
An overseas enquiry should give the number of chassis, the country and the port or city of delivery, the delivery terms wanted, for example FOB or CIF, any packing needs and any tender reference.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Fully Functional Cut Section Model of Chassis at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its automobile engineering cut-section models, working models and trainers go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
