Section Model of Four-Stroke Diesel Engine
Product Code : EL-AELE-10736

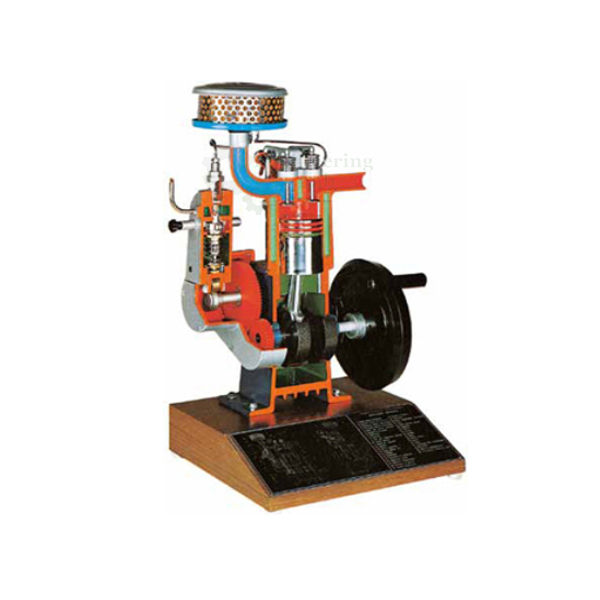

The Four-Stroke Diesel Engine section model represents the internal structure and the operating principle.
The internal surfaces finished in different colors to indicate air, fuel and gas mixture, and exhaust gas contents.
With cam operated jerk pump and manually operated air inlet diaphragm injection nozzle and starting valve.
The firing point of the engine is shown by a 3-volt bulb, which glows at the correct point in the cycle by means of an electrical contact system in the model.
Indirect injection, complete with injection pump, injector, pre-chamber, preheating glow plug, cooling system, distribution circuit, etc.
In order to simulate the active stage of the cycle a small bulb lights up during the expansion phase.
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc.
Many parts have been chromium-plated and galvanized for a longer life.
The most rational training model of a 4-stroke diesel engine sectioned for training purposes.
FEATURES:
Equipment Layout: On Base
Fine finish
Operated: Manually (Through a Crank Handle)
Simple operations
Functional accuracy
SPECIFICATION:
Displacement: 100cc
Power: 6 hp
Camshaft in the crankcase
Carburetor
Air filter
Silencer
Overhead valves
Rpm regulator
Oil pump
Tank
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 500 x650 mm
Weight (approx.): 25kg
