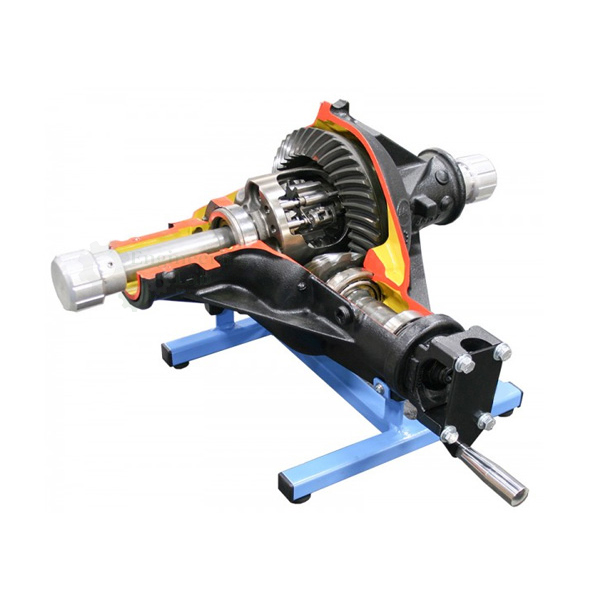

Working Model of Clutch Type Differential

Working Model of Clutch Type Differential

Product Code : EL-AELE-10741

Quick Answer: This Working Model of Clutch Type Differential demonstrates the operation and application of a clutch-type limited slip differential (LSD). It has all of the same components as an open differential, but adds a spring pack and a set of clutches, with some designs using a cone clutch similar to the synchronizers in a manual transmission.

This cutaway model is carefully sectioned for training purposes and professionally painted with different colours to better differentiate the various parts, cross-sections, and fuel system. Many parts are chromium-plated and galvanized for longer life.

FEATURES
Clutch type differential model ideal for classroom demonstrations
Cross-sectioned various parts to show internal operation
OperatedManually
Equipment LayoutOn Base with wheel
Functional accuracy
Fine finish
Simple operations
SPECIFICATION
Light metal construction.
Operated manually by a crank handle
Mounted on a base
DIMENSIONS AND WEIGHT
L x W x H (approx.)450 x 400 x 300 mm
Weight (approx.)12 kg

For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Working Model of Torsion Differential, Cut Model of Rear Axle with Locking Differential, Working Model of Drive Shaft, Working Model of Gear Box with Clutch
