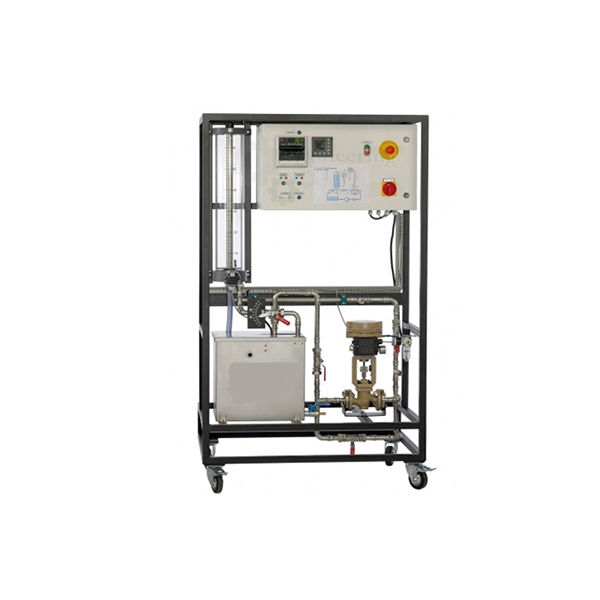

Computerized Level Control Trainer
Product Code : EL-MAILE-10802
Quick Answer: The Computerized Level Control Trainer is a closed-loop process control trainer that demonstrates industrial level control using real control-engineering components. A centrifugal pump (250W, 150L/min, 7m head) delivers water from a 30L storage tank into a transparent 7L level-controlled tank, where a pressure transducer at the tank's base measures the liquid level (0…0,6m, 0…100mbar) and a digital industrial controller drives a pneumatically operated control valve (DN 20, Kvs 4,0m3/h) fitted with an electro-pneumatic positioner to regulate it, while a ball valve in the outlet line introduces defined disturbance variables. The controlled variable X and manipulating variable Y are plotted on an integrated 2-channel line recorder or tapped as analogue signals at switch-cabinet lab jacks for connecting external recording equipment such as an oscilloscope or flatbed plotter, with optional process control software available, giving a practical, industry-realistic introduction to control-engineering fundamentals via a freely configurable P, I, D digital controller.
A pump delivers water from a storage tank to the transparent level-controlled tank, and the liquid level is measured by a pressure transducer installed at the base of the level-controlled tank. The controller used is a digital industrial controller, and the actuator in the control loop is a pneumatically operated control valve with an electro-pneumatic positioner; a ball valve in the outlet line enables defined disturbance variables to be generated. The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder, or alternatively the variables can be tapped as analogue signals at lab jacks on the switch cabinet, which enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected; process control software is optionally available.
| FEATURES | |
|---|---|
| Experimental introduction to control engineering using an example of level control | |
| Construction of the system with components commonly used in industry | |
| Digital controller with freely selectable parameters | P, I, D and all combinations |
| Level measurement by pressure sensor | |
| SPECIFICATION | |
| Storage tank | 30L |
| Centrifugal pump | |
| Power consumption | 250W |
| Flow rate | 150L/min |
| Head | 7m |
| Speed | 2800min-1 |
| Level-controlled tank | |
| 7L | |
| Level | 0…0,6m |
| Pressure sensor | 0…100mbar |
| Pneumatically operated control valve DN 20 | |
| Kvs | 4,0m3/h |
| Reference variable | 4…20mA |
| Nominal stroke | 15mm |
| Characteristic curve equal-percentage | |
| Line recorder | |
| 2x 4…20mA | |
| Feed rate | 0…7200mm/h, stepped |
| Controller | |
| Process variables X, Y as analogue signals | 4…20mA |
| Power required for operation | |
| 230V, 50Hz, 1 phase | |
| 230V, 60Hz, 1 phase | |
| DIMENSIONS AND WEIGHT | |
| LxWxH | 1000x700x1750mm |
| Weight | approx. 120kg |
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
