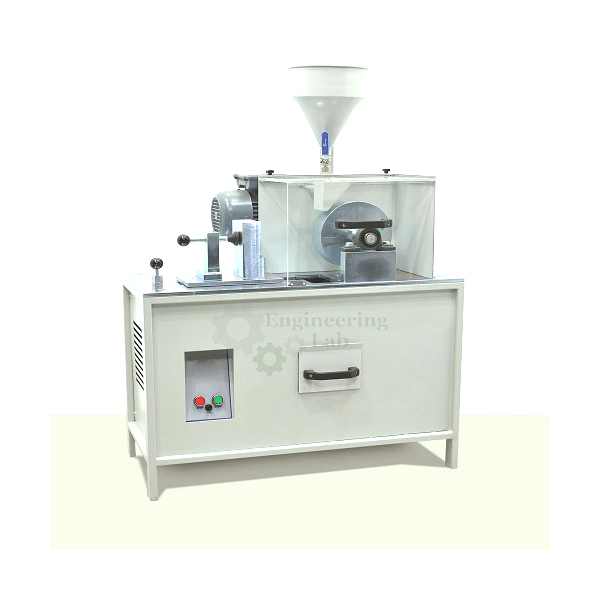

Wide Wheel Abrasion Testing Machine

Wide Wheel Abrasion Testing Machine

Product Code : EL-ATLE-10472

Abrasion Testing Machine is designed for determining the resistance to abrasion/wear of natural stones and concrete products used for paving.
The machine is equipped with a digital counter which stops the machine at the end of a preset number of revolutions.
The abrasion wheel is 70 mm thick and rotates at a speed of 75 rpm.

Narrow Wheel Abrasion Testing Machine is designed for determining the resistance to abrasion of unglazed tiles, grouts used for tiles and clay pavers.
The abrasion wheel is 10 mm thick.
Abrasive corundum sand, calibration marble (boloneisse) and mould (for EN 12808-2) should be ordered separately.
Dimensions: 620x670x1350 mm
Weight (approx.): 130 kg
Power: 370 W

Standards:
Wide Wheel : EN 1338, 1339, 1340, 1341, 1342, 13748-1,13748-2, 14157
Narrow Wheel: 10545-6, 12808-2
