Laboratory Concrete Mixer

Laboratory Concrete Mixer

Product Code : EL-CTLE-10288

Quick Answer:
A Laboratory Concrete Mixer is used for preparing the mix design of concrete, using a steel vessel of 55/110 litres capacity mounted on a frame and rotated at 20-22 RPM by a motor and pulley arrangement. The vessel can be tilted to any angle by a hand wheel and counter weight to facilitate mixing and discharge, with blades inside the vessel mixing the material thoroughly, and it is fitted with a 1½ HP motor suitable for operation on a 220V, single phase, 50Hz AC supply.

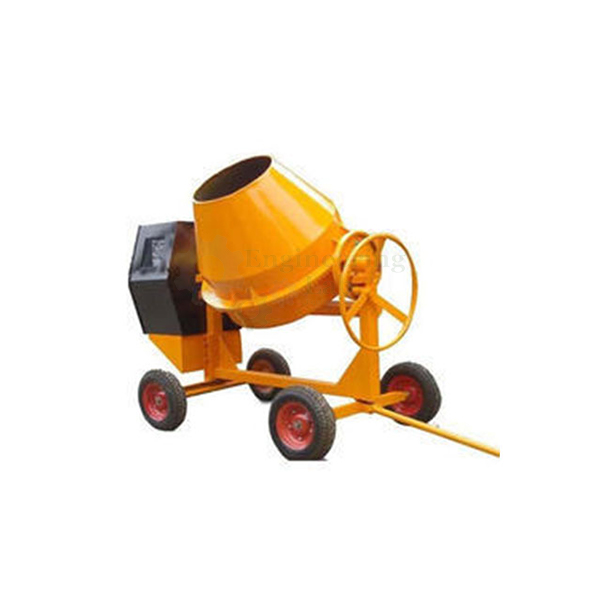

The Laboratory Concrete Mixer is used for preparing Mix Design of Concrete. It consists of a steel vessel of 55/110 Litres capacity, mounted on a frame, and the vessel is rotated at 20-22 RPM with the help of a motor and a pulley arrangement. The vessel can be tilted to any angle by a hand wheel and counter weight, which facilitates mixing and discharge, and blades are provided inside the vessel to mix the material thoroughly. The large pulley wheel facilitates manual rotation of the drum during power failure, and the concrete mixer is fitted with a 1½ HP motor. The drum, pulley wheel and motor are mounted on a steel frame, and the mixer is suitable for operation on 220V, Single Phase, 50Hz, AC Supply.

Standards: BS and IS

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Cylindrical Mould, L-Box Apparatus, Automatic Digital Compression Testing Machine, Bleeding Of Freshly Mixed Concrete, Electronic Concrete Test Hammer (Schmidt Hammer), Concrete Railway Sleepers and Bearers Static Testing Machine
