Steam Engine Model
Product Code : EL-AELE-10739

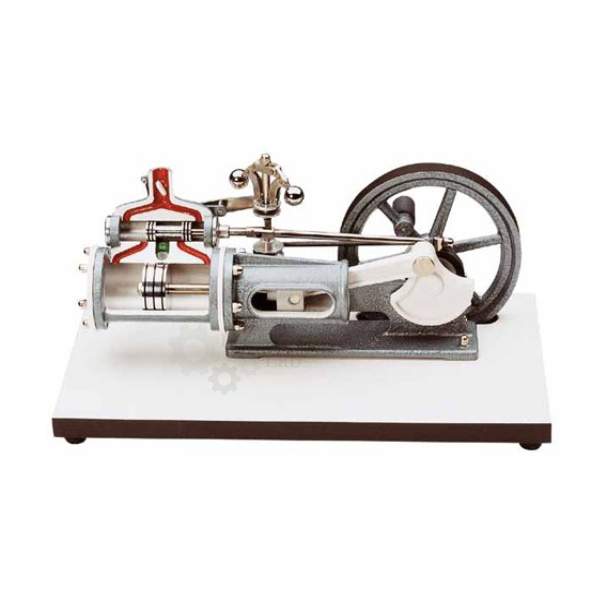

The Educational model of a modern horizontal steam engine with piston valve control.
The model can be put in motion by turning the flywheel, thus showing the manner of operation of the engine and of the built-on centrifugal governor.
Many parts have been chromium-plated and galvanized for a longer life.
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc.
FEATURES:
Steam engine model ideal for classroom demonstrations
Cross-sectioned cylinder to show internal operation
Working parts – piston, slide valve both move and the link motion and reversing method operate
SPECIFICATION:
This model shows the internal structure and operating principles of a working steam engine.
The metal cylinder is cross-section cut and is covered with a clear plate to show movement of the piston inside the cylinder.
The movement of the wheel is light enough to demonstrate even by blowing air from one’s mouth.
Complete with working parts – the piston, slide valve both move and the link motion and reversing method can be observed.
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 450 x 350 x 300 mm
Weight (approx.): 9 kg
