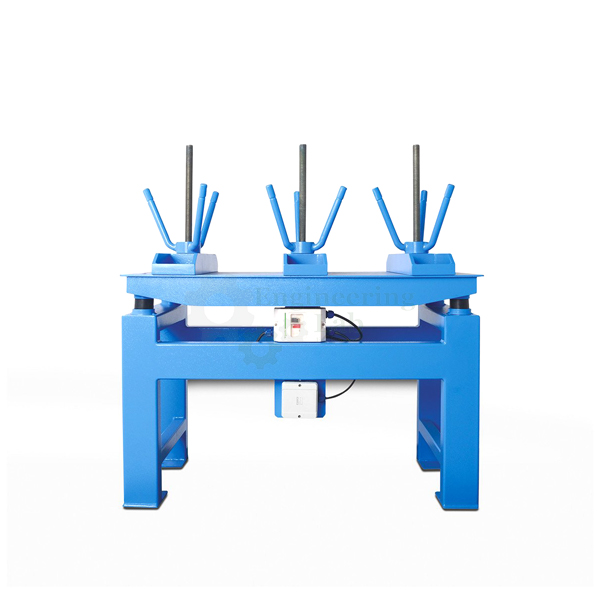

Vibrating Table

Vibrating Table

Product Code : EL-CTLE-10296

The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet.
The vibrations are imparted by means off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top.
It is designed to carry a load of 140 kg.
The table top is 500 x 500 mm and has stops along its edges to prevent moulds from walking off the table during vibration.
A crass arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute.
A speed regulation handle is provided for increasing or decreasing frequency.
A switch is provided for starting the motor.
Suitable for operator on 230 Volts, A.C. Single Phase, 50 Cycles.

Standards: EN 12390-2 | BS1881:108 | UNI 6127
