Wankel Engine Model

Wankel Engine Model

Product Code : EL-AELE-10740

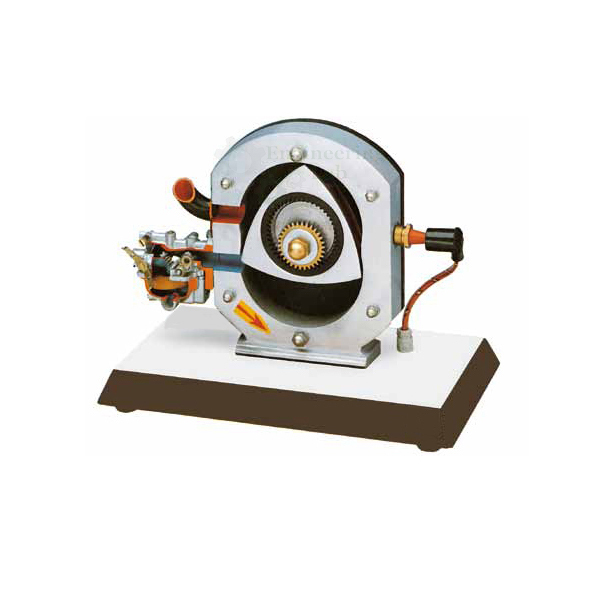

The Educational model of a Wankel engine.
This rotating engine model is true to the original and complete with cutaway carburetor.
This cut-away model is carefully sectioned for training purposes and is professionally painted with different colors to better differentiate the various parts, cross sections and fuel system.
The rotor (triangular piston), operates by the driving shaft and rotates inside the stator clearly showing the different phases.
During the compression phase, a small bulb lights up to simulate the gas ignition.
Many parts have been chromium plated and galvanized for a longer life.

FEATURES:
Wankel engine model ideal for classroom demonstrations
Cross-sectioned various parts to show internal operation
Equipment Layout: On Base with wheel
Fine finish
Simple operations
Functional accuracy
Operated: Manually

SPECIFICATION:
Light metal construction.
Mounted on a base
Operated manually by a crank handle

DIMENSIONS AND WEIGHT:
L x W x H (approx.): 350 x 400 x 300 mm
Weight (approx.): 7 kg
